DGD2003S8-13 - DGD2003S8-13

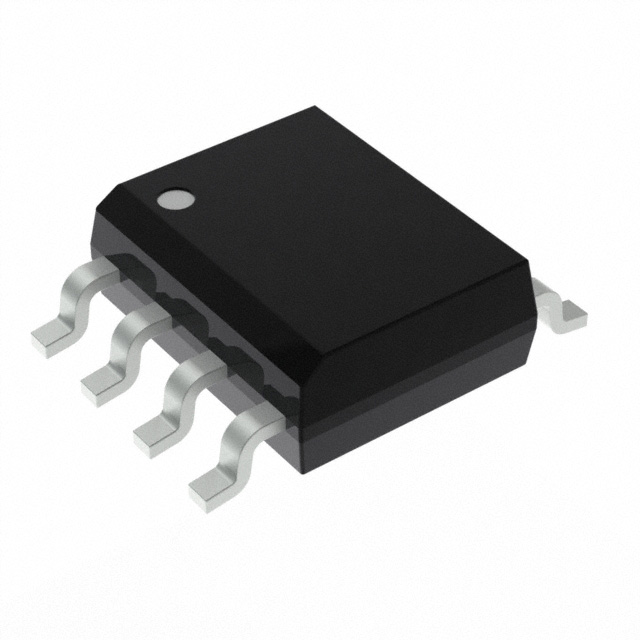

DGD2003S8-13

Active
Diodes Inc

MOSFET DRIVER, 2 CHANNELS, HALF BRIDGE, HIGH SIDE, 600 MA, 10 V TO 20 V, 150 NS, 8 PINS, SOIC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDGD2003, DGD2005 & DGD2012 New Prod. Annc+3
DGD2003S8-13 - DGD2003S8-13

DGD2003S8-13

Active
Diodes Inc

MOSFET DRIVER, 2 CHANNELS, HALF BRIDGE, HIGH SIDE, 600 MA, 10 V TO 20 V, 150 NS, 8 PINS, SOIC

Deep-Dive with AI

DocumentsDatasheetDGD2003, DGD2005 & DGD2012 New Prod. Annc+3

Technical Specifications

Parameters and characteristics for this part

SpecificationDGD2003S8-13
Channel TypeSynchronous
Current - Peak Output (Source, Sink) [custom]290 mA
Current - Peak Output (Source, Sink) [custom]600 mA
Driven ConfigurationHalf-Bridge
Gate TypeN-Channel MOSFET
High Side Voltage - Max (Bootstrap) [Max]200 V
Input TypeNon-Inverting
Logic Voltage - VIL, VIH2.5 V, 0.8 V
Mounting TypeSurface Mount
Number of Drivers2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / Case8-SOIC
Package / Case [x]0.154 in
Package / Case [y]3.9 mm
Rise / Fall Time (Typ) [custom]35 ns
Rise / Fall Time (Typ) [custom]70 ns
Supplier Device Package8-SO Type TH
Voltage - Supply [Max]20 V
Voltage - Supply [Min]10 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.51
10$ 0.95
25$ 0.80
100$ 0.64
250$ 0.56
500$ 0.51
1000$ 0.46
Digi-Reel® 1$ 1.51
10$ 0.95
25$ 0.80
100$ 0.64
250$ 0.56
500$ 0.51
1000$ 0.46
Tape & Reel (TR) 2500$ 0.42
5000$ 0.39
7500$ 0.38
12500$ 0.36
17500$ 0.36
25000$ 0.35

Description

General part information

DGD2003 Series

The DGD2003 is a high-voltage / high-speed gate driver capable of driving N-channel MOSFETs and IGBTs in a half-bridge configuration. High voltage processing techniques enable the DGD2003’s high side to switch to 200V in a bootstrap operation.
