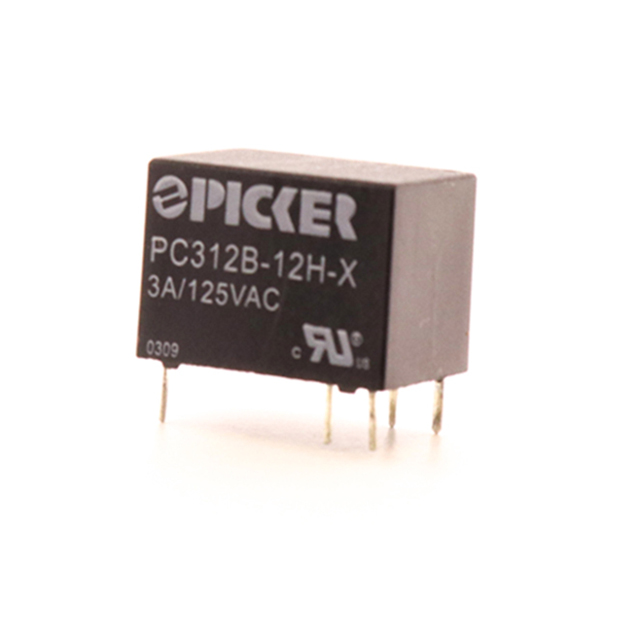

PC312B-12H-X

Active

Picker Components

RELAY TELECOM SPDT 3A 12V

Search across all available documentation for this part.

Active

Picker Components

RELAY TELECOM SPDT 3A 12V

Technical Specifications

Parameters and characteristics for this part

RELAY TELECOM SPDT 3A 12V

Part	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Release Time	Must Release Voltage	Contact Rating (Current)	Operate Time	Load - Max Switching	Coil Voltage	Coil Resistance	Switching Voltage	Relay Type	Coil Type	Contact Form	Coil Insulation	Mounting Type	Seal Rating	Termination Style	Must Operate Voltage
Picker Components PC312B-12H-X	Gold (Au), Silver Nickel (AgNi)	70 °C	-25 °C	16.7 mA	5 ms	1.2 VDC	3 A	5 ms	144 W, 900 VA	12 VDC	720 Ohms	48 VDC, 300 VAC	Telecom	Non Latching	SPDT (1 Form C)	Class B	Through Hole	Sealed - Fully	PC Pin	9 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 0.62

General part information

Telecom Relay SPDT (1 Form C) 12VDC Coil Through Hole
