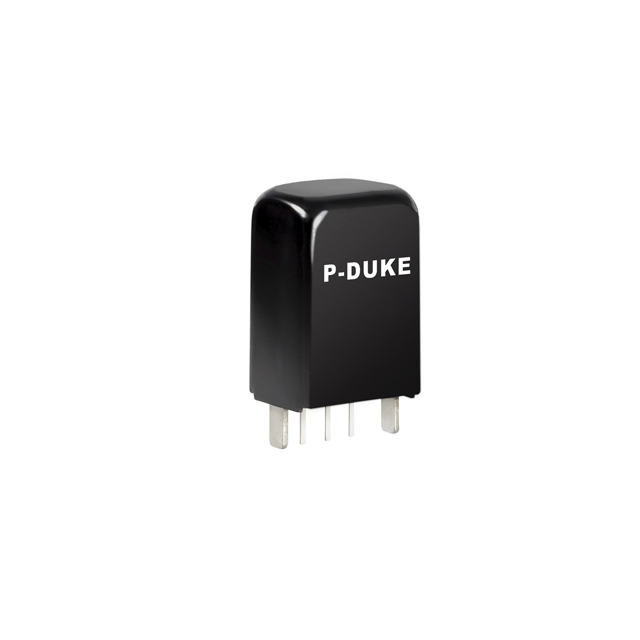

HSR01-48S09

Active

P-DUKE Technology

DC DC CONVERTER 9V 9W

Search across all available documentation for this part.

Active

P-DUKE Technology

DC DC CONVERTER 9V 9W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 5V 5W

Part	Number of Outputs	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Approval Agency	Package / Case	Efficiency	Mounting Type	Power (Watts)	Applications	Voltage - Input (Min) [Min]	Features	Voltage - Isolation
P-DUKE Technology HSR01-48S05	1	1 A	72 V	8.6 mm	0.34 in	12.1 mm	0.48 in	0.69 "	17.5 mm	Non-Isolated PoL Module	-40 °C	105 C	5 V	CE	3-SIP Module	86.5 %	Through Hole	5 W	ITE (Commercial)	9 V
P-DUKE Technology HSR01-48S09	1	1 A	72 V	8.6 mm	0.34 in	12.1 mm	0.48 in	0.69 "	17.5 mm		-40 °C	105 C	9 V	CE	3-SIP Module	90 %	Through Hole	9 W	ITE (Commercial)	14 V	Remote On/Off	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DC DC Converter 1 Output 9V 1A 14V - 72V Input
