102154-3

Active

TE Connectivity AMP Connectors

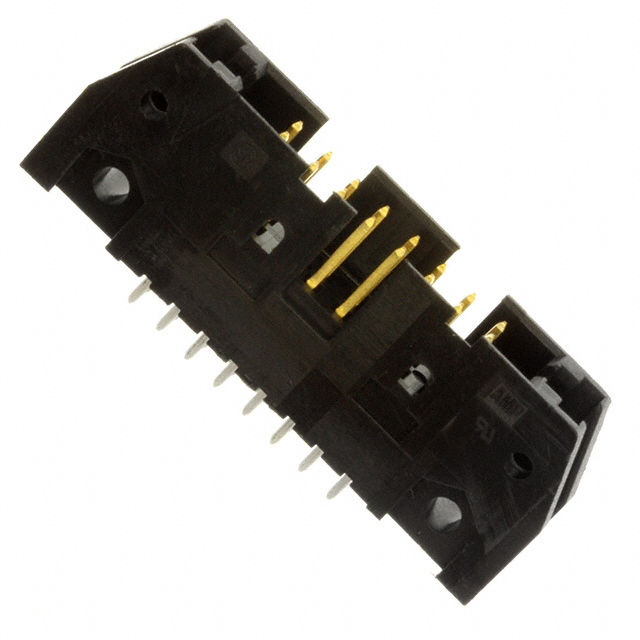

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

102154-3

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	102154-3	102154 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold or Gold-Palladium	Gold or Gold-Palladium
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	2.79 mm	2.79 mm
Contact Length - Post [x]	0.11 in	0.11 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1 A	1 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.549 in	0.549 in
Insulation Height	13.94 mm	13.94 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	16	16
Number of Positions	-	14 - 64
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	16.23 mm	16.23 mm
Overall Contact Length	0.639 in	0.639 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	910	$ 1.70

102154 Series

CONN HEADER VERT 14POS 2.54MM

Part	Contact Finish - Mating	Termination	Shrouding	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating [x]	Contact Material	Connector Type	Contact Length - Post [x]	Contact Length - Post	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Type	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Fastening Type	Contact Shape	Contact Finish - Post	Insulation Height	Insulation Height	Number of Positions	Overall Contact Length	Overall Contact Length	Insulation Color	Number of Positions
TE Connectivity AMP Connectors 102154-2	Gold or Gold-Palladium	Solder	Shrouded - 4 Wall	UL94 V-0	6.1 mm	0.24 in	Phosphor Bronze	Header	0.11 in	2.79 mm	0.1 in	2.54 mm	2	Male Pin	1 A	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	All	-65 ░C	105 ░C	30 Áin	0.76 Ám	Board to Cable/Wire	Push-Pull	Square	Tin-Lead	0.549 in	13.94 mm	14	16.23 mm	0.639 in	Black
TE Connectivity AMP Connectors 102154-5	Gold or Gold-Palladium	Solder	Shrouded - 4 Wall	UL94 V-0	6.1 mm	0.24 in	Phosphor Bronze	Header	0.11 in	2.79 mm	0.1 in	2.54 mm	2	Male Pin	1 A	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	All	-65 ░C	105 ░C	30 Áin	0.76 Ám	Board to Cable/Wire	Push-Pull	Square	Tin-Lead	0.549 in	13.94 mm	24	16.23 mm	0.639 in	Black
TE Connectivity AMP Connectors 1-102154-0	Gold or Gold-Palladium	Solder	Shrouded - 4 Wall	UL94 V-0	6.1 mm	0.24 in	Phosphor Bronze	Header	0.11 in	2.79 mm	0.1 in	2.54 mm	2	Male Pin	1 A	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	All	-65 ░C	105 ░C	30 Áin	0.76 Ám	Board to Cable/Wire	Push-Pull	Square	Tin-Lead	0.549 in	13.94 mm	50	16.23 mm	0.639 in	Black
TE Connectivity AMP Connectors 102154-7	Gold or Gold-Palladium	Solder	Shrouded - 4 Wall	UL94 V-0	6.1 mm	0.24 in	Phosphor Bronze	Header	0.11 in	2.79 mm	0.1 in	2.54 mm	2	Male Pin	1 A	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	All	-65 ░C	105 ░C	30 Áin	0.76 Ám	Board to Cable/Wire	Push-Pull	Square	Tin-Lead	0.549 in	13.94 mm	30	16.23 mm	0.639 in	Black
TE Connectivity AMP Connectors 102154-9	Gold or Gold-Palladium	Solder	Shrouded - 4 Wall	UL94 V-0	6.1 mm	0.24 in	Phosphor Bronze	Header	0.11 in	2.79 mm	0.1 in	2.54 mm	2	Male Pin	1 A	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	All	-65 ░C	105 ░C	30 Áin	0.76 Ám	Board to Cable/Wire	Push-Pull	Square	Tin-Lead	0.549 in	13.94 mm	40	16.23 mm	0.639 in	Black
TE Connectivity AMP Connectors 1-102154-1	Gold or Gold-Palladium	Solder	Shrouded - 4 Wall	UL94 V-0	6.1 mm	0.24 in	Phosphor Bronze	Header	0.11 in	2.79 mm	0.1 in	2.54 mm	2	Male Pin	1 A	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	All	-65 ░C	105 ░C	30 Áin	0.76 Ám	Board to Cable/Wire	Push-Pull	Square	Tin-Lead	0.549 in	13.94 mm	60	16.23 mm	0.639 in	Black
TE Connectivity AMP Connectors 102154-3	Gold or Gold-Palladium	Solder	Shrouded - 4 Wall	UL94 V-0	6.1 mm	0.24 in	Phosphor Bronze	Header	0.11 in	2.79 mm	0.1 in	2.54 mm	2	Male Pin	1 A	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	All	-65 ░C	105 ░C	30 Áin	0.76 Ám	Board to Cable/Wire	Push-Pull	Square	Tin-Lead	0.549 in	13.94 mm		16.23 mm	0.639 in	Black	16
TE Connectivity AMP Connectors 1-102154-2	Gold or Gold-Palladium	Solder	Shrouded - 4 Wall	UL94 V-0	6.1 mm	0.24 in	Phosphor Bronze	Header	0.11 in	2.79 mm	0.1 in	2.54 mm	2	Male Pin	1 A	2.54 mm	0.1 in	2.54 µm	100 µin	Through Hole	All	-65 ░C	105 ░C	30 Áin	0.76 Ám	Board to Cable/Wire	Push-Pull	Square	Tin-Lead	0.549 in	13.94 mm	64	16.23 mm	0.639 in	Black

Description

General part information

102154 Series

Connector Header Through Hole 16 position 0.100" (2.54mm)
