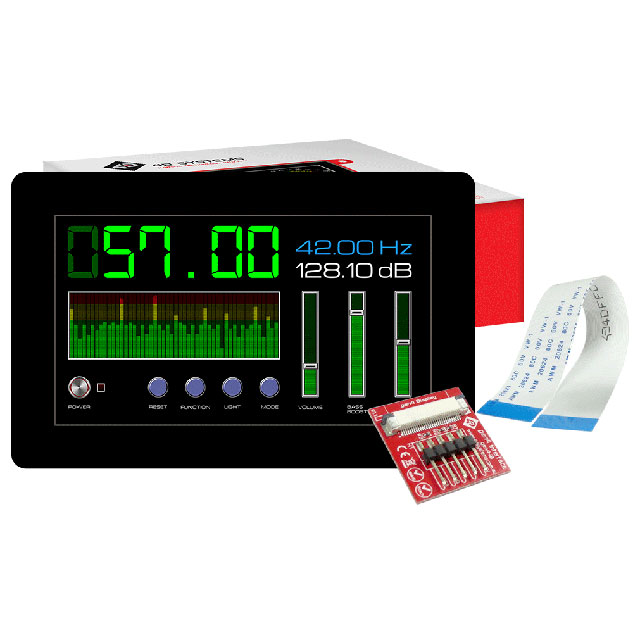

GEN4-ULCD-70DCT-CLB

Active

4D Systems Pty Ltd

GRAPHIC DISPLAY TFT RGB 7"

Deep-Dive with AI

Search across all available documentation for this part.

Documents4D-Display click Compatible Part Numbers

GEN4-ULCD-70DCT-CLB

Active

4D Systems Pty Ltd

GRAPHIC DISPLAY TFT RGB 7"

Deep-Dive with AI

Documents4D-Display click Compatible Part Numbers

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GEN4-ULCD-70DCT-CLB	GEN4-ULCD Series

Backlight	LED - White	LED - White
Diagonal Screen Size	177.8 mm	60.96 - 177.8 mm
Diagonal Screen Size	7 in	2.8 - 7 in
Diagonal Screen Size	-	127 mm
Diagonal Screen Size	-	2.4 - 5 in
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color	TFT - Color
Dot Pitch [x]	0.19 mm	0.15 - 0.2 mm
Dot Pitch [y]	0.18 mm	0.15 - 0.2 mm
Dot Pixels	WVGA	WVGA
Dot Pixels [x]	800	240 - 800
Dot Pixels [y]	480	272 - 480
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	Parallel/Serial	SPI, I2C, TTL, Parallel/Serial
Touchscreen	Capacitive	Resistive, Capacitive
Viewing Area	-	43.2 mm
Viewing Area	-	57.6 mm
Viewing Area	-	64.8 - 73.4 mm
Viewing Area [x]	154 mm	36.7 - 154 mm
Viewing Area [y]	85.92 mm	48.6 - 85.92 mm

GEN4-ULCD Series

GRAPHIC DISPLAY TFT RGB 4.3"

Part	Dot Pitch [x]	Dot Pitch [y]	Display Type	Display Mode	Interface	Graphics Color	Touchscreen	Backlight	Dot Pixels [y]	Dot Pixels [x]	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [y]	Viewing Area [x]	Viewing Area [custom]	Viewing Area [custom]	Dot Pixels	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]
4D Systems Pty Ltd GEN4-ULCD-43DT-AR	0.2 mm	0.2 mm	TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red	Resistive	LED - White	272	480	109.22 mm	4.3 in	53.86 mm	95.04 mm
4D Systems Pty Ltd GEN4-ULCD-28D	0.18 mm	0.18 mm	TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red		LED - White	320	240 pixels	71.12 mm	2.8 in			43.2 mm	57.6 mm
4D Systems Pty Ltd GEN4-ULCD-28DT-AR	0.18 mm	0.18 mm	TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red	Resistive	LED - White	320	240 pixels	71.12 mm	2.8 in			43.2 mm	57.6 mm
4D Systems Pty Ltd GEN4-ULCD-70DCT-CLB	0.19 mm	0.18 mm	TFT - Color	Transmissive	Parallel/Serial	Blue, Green, Red	Capacitive	LED - White	480	800	177.8 mm	7 in	85.92 mm	154 mm			WVGA
4D Systems Pty Ltd GEN4-ULCD-70D	0.19 mm	0.18 mm	TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red		LED - White	480	800	177.8 mm	7 in	85.92 mm	154 mm			WVGA
4D Systems Pty Ltd GEN4-ULCD-43D	0.2 mm	0.2 mm	TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red		LED - White	272	480	109.22 mm	4.3 in	53.86 mm	95.04 mm
4D Systems Pty Ltd GEN4-ULCD-50D-PI			TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red		LED - White	480	800			64.8 mm	108 mm			WVGA	127 mm	5 in
4D Systems Pty Ltd GEN4-ULCD-70D-AR	0.19 mm	0.18 mm	TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red		LED - White	480	800	177.8 mm	7 in	85.92 mm	154 mm			WVGA
4D Systems Pty Ltd GEN4-ULCD-24DT-AR	0.15 mm	0.15 mm	TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red	Resistive	LED - White	320	240 pixels	60.96 mm		49 mm	36.7 mm					2.4 in
4D Systems Pty Ltd GEN4-ULCD-70DT-AR	0.19 mm	0.18 mm	TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red	Resistive	LED - White	480	800	177.8 mm	7 in	85.92 mm	154 mm			WVGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 189.95
		10	$ 161.10

Description

General part information

GEN4-ULCD Series

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel/Serial 7" (177.80mm) 800 x 480 (WVGA)

Documents

Technical documentation and resources
