MK5140
Activeifm efector, inc.

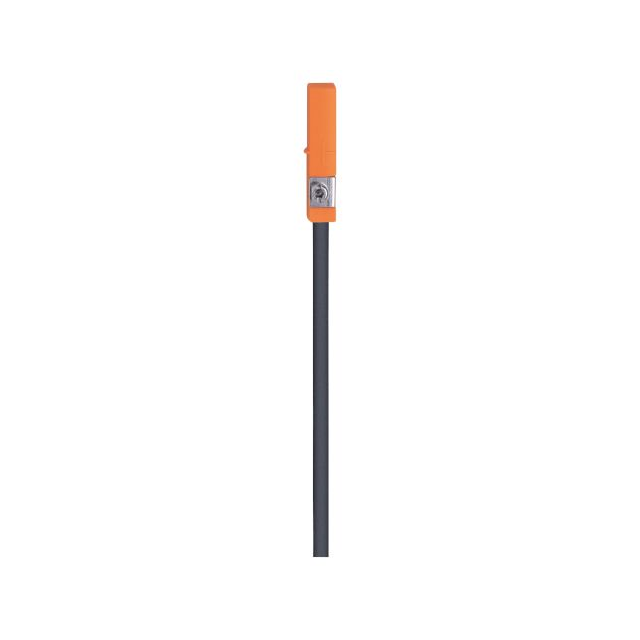

CYLINDER SENSOR WITH AMR CELL; 2
MK5140
Activeifm efector, inc.
CYLINDER SENSOR WITH AMR CELL; 2
Description
General part information
MK5140
Sensor Linear Position T-Slot Cable
Technical Specifications
Parameters and characteristics for this part
| Specification | MK5140 |
|---|---|
| Actuator Type | T-Slot |
| Current - Output (Max) | 100 mA |
| Current - Supply (Max) | 10 mA |
| For Measuring | Linear Position |
| Function | Special Purpose |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Output | Digital |
| Output Type | PNP-NO |
| Package / Case | Module |
| Polarization | South Pole |
| Sensing Range | 2 mT |
| Technology | Hall Effect |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
