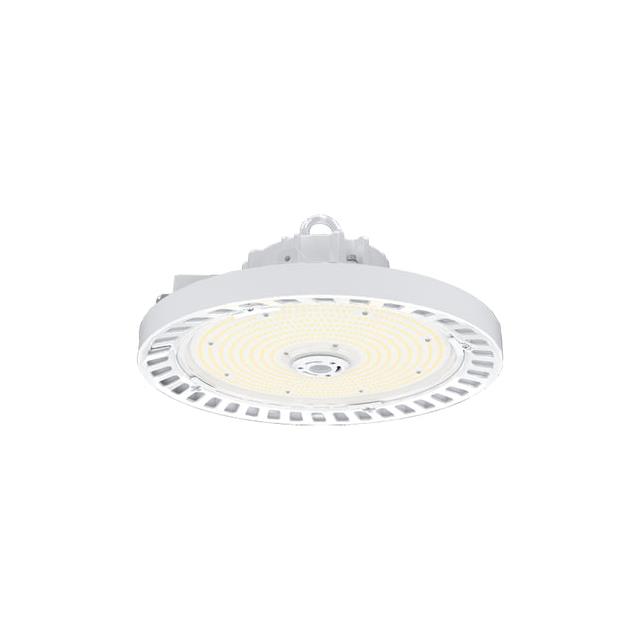

Specification	151778

Approval Agency	UL
Features	Dimmable
Housing Material	Aluminum, Al
Illumination Color	White
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Lens Type	Tubular
Luminous Flux	33600 lm
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-40 °C
Power - Rated	240 VA
Profile Diameter	14.57 in
Profile Shape	Dia
Termination Style	Connector
Voltage - Supply (Maximum)	277 V
Voltage - Supply (Minimum)	100 VAC
