1-794633-0
ObsoleteTE Connectivity AMP Connectors

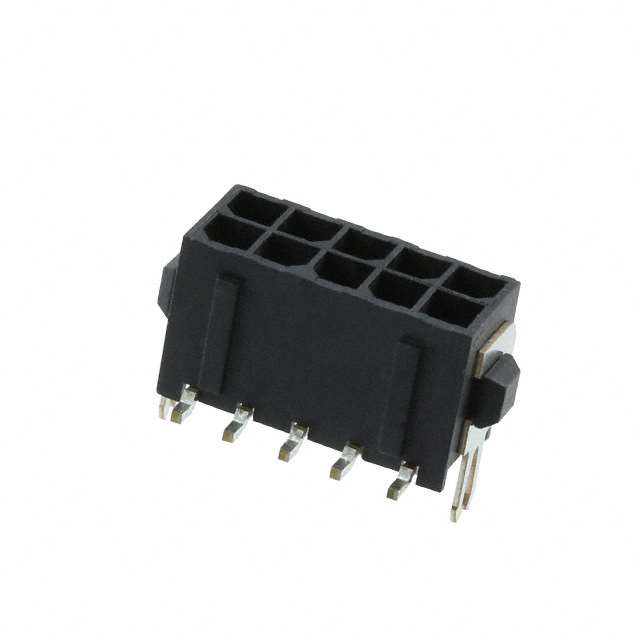

CONN HEADER SMD 10POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-794633-0
ObsoleteTE Connectivity AMP Connectors
CONN HEADER SMD 10POS 3MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-794633-0 | 794633 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Tin-Lead | Tin-Lead |
| Contact Finish - Post | Tin-Lead | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 2.54 çm | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Pick and Place, Board Lock | Pick and Place, Board Lock |
| Insulation Color | Black | Black |
| Insulation Height | 9.25 mm | 9.25 mm |
| Insulation Height | 0.364 in | 0.364 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 10 | 4 - 24 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.118 in | 0.118 in |
| Pitch - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
794633 Series
CONN HEADER SMD 16POS 3MM
| Part | Number of Positions Loaded | Contact Finish - Mating | Insulation Height | Insulation Height | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Contact Type | Insulation Material | Applications | Number of Rows | Number of Positions | Pitch - Mating | Pitch - Mating | Features | Contact Shape | Contact Material | Shrouding | Voltage Rating | Fastening Type | Contact Finish - Post | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Current Rating (Amps) | Material Flammability Rating | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-794633-6 | All | Tin-Lead | 9.25 mm | 0.364 in | Surface Mount | 2.54 µm | 100 µin | Board to Cable/Wire | Male Pin | Nylon, Polyamide (PA) | General Purpose | 2 | 16 | 0.118 in | 3 mm | Board Lock, Pick and Place | Square | Brass | Shrouded - 4 Wall | 250 VDC | Locking Ramp | Tin-Lead | Solder | -40 °C | 105 ░C | Header | Varies by Wire Gauge | UL94 V-0 | 3 mm | 0.118 in | Black | 2.54 çm | 100 çin | |
TE Connectivity AMP Connectors 4-794633-8 | All | 9.25 mm | 0.364 in | Surface Mount | 2.54 µm | 100 µin | Board to Cable/Wire | Male Pin | Nylon, Polyamide (PA) | General Purpose | 2 | 0.118 in | 3 mm | Board Lock, Pick and Place | Square | Brass | Shrouded - 4 Wall | 250 VDC | Locking Ramp | Tin | Solder | -40 °C | 105 ░C | Header | Varies by Wire Gauge | UL94 V-0 | 3 mm | 0.118 in | Black | 2.54 çm | 100 çin | 18 | ||
TE Connectivity AMP Connectors 4-794633-0 | All | 9.25 mm | 0.364 in | Surface Mount | 2.54 µm | 100 µin | Board to Cable/Wire | Male Pin | Nylon, Polyamide (PA) | General Purpose | 2 | 0.118 in | 3 mm | Board Lock, Pick and Place | Square | Brass | Shrouded - 4 Wall | 250 VDC | Locking Ramp | Tin | Solder | -40 °C | 105 ░C | Header | Varies by Wire Gauge | UL94 V-0 | 3 mm | 0.118 in | Black | 2.54 çm | 100 çin | 10 | ||
TE Connectivity AMP Connectors 794633-4 | All | Tin-Lead | 9.25 mm | 0.364 in | Surface Mount | 2.54 µm | 100 µin | Board to Cable/Wire | Male Pin | Nylon, Polyamide (PA) | General Purpose | 2 | 0.118 in | 3 mm | Board Lock, Pick and Place | Square | Brass | Shrouded - 4 Wall | 250 VDC | Locking Ramp | Tin-Lead | Solder | -40 °C | 105 ░C | Header | Varies by Wire Gauge | UL94 V-0 | 3 mm | 0.118 in | Black | 2.54 çm | 100 çin | 4 | |
TE Connectivity AMP Connectors 794633-8 | All | Tin-Lead | 9.25 mm | 0.364 in | Surface Mount | 2.54 µm | 100 µin | Board to Cable/Wire | Male Pin | Nylon, Polyamide (PA) | General Purpose | 2 | 0.118 in | 3 mm | Board Lock, Pick and Place | Square | Brass | Shrouded - 4 Wall | 250 VDC | Locking Ramp | Tin-Lead | Solder | -40 °C | 105 ░C | Header | Varies by Wire Gauge | UL94 V-0 | 3 mm | 0.118 in | Black | 2.54 çm | 100 çin | 8 | |
TE Connectivity AMP Connectors 5-794633-0 | All | 9.25 mm | 0.364 in | Surface Mount | 2.54 µm | 100 µin | Board to Cable/Wire | Male Pin | Nylon, Polyamide (PA) | General Purpose | 2 | 0.118 in | 3 mm | Board Lock, Pick and Place | Square | Brass | Shrouded - 4 Wall | 250 VDC | Locking Ramp | Tin | Solder | -40 °C | 105 ░C | Header | Varies by Wire Gauge | UL94 V-0 | 3 mm | 0.118 in | Black | 2.54 çm | 100 çin | 20 | ||
TE Connectivity AMP Connectors 794633-6 | All | Tin-Lead | 9.25 mm | 0.364 in | Surface Mount | 2.54 µm | 100 µin | Board to Cable/Wire | Male Pin | Nylon, Polyamide (PA) | General Purpose | 2 | 0.118 in | 3 mm | Board Lock, Pick and Place | Square | Brass | Shrouded - 4 Wall | 250 VDC | Locking Ramp | Tin-Lead | Solder | -40 °C | 105 ░C | Header | Varies by Wire Gauge | UL94 V-0 | 3 mm | 0.118 in | Black | 2.54 çm | 100 çin | 6 | |
TE Connectivity AMP Connectors 5-794633-4 | All | 9.25 mm | 0.364 in | Surface Mount | 2.54 µm | 100 µin | Board to Cable/Wire | Male Pin | Nylon, Polyamide (PA) | General Purpose | 2 | 0.118 in | 3 mm | Board Lock, Pick and Place | Square | Brass | Shrouded - 4 Wall | 250 VDC | Locking Ramp | Tin | Solder | -40 °C | 105 ░C | Header | Varies by Wire Gauge | UL94 V-0 | 3 mm | 0.118 in | Black | 2.54 çm | 100 çin | 24 | ||
TE Connectivity AMP Connectors 4-794633-2 | All | 9.25 mm | 0.364 in | Surface Mount | 2.54 µm | 100 µin | Board to Cable/Wire | Male Pin | Nylon, Polyamide (PA) | General Purpose | 2 | 0.118 in | 3 mm | Board Lock, Pick and Place | Square | Brass | Shrouded - 4 Wall | 250 VDC | Locking Ramp | Tin | Solder | -40 °C | 105 ░C | Header | Varies by Wire Gauge | UL94 V-0 | 3 mm | 0.118 in | Black | 2.54 çm | 100 çin | 12 | ||
TE Connectivity AMP Connectors 1-794633-0 | All | Tin-Lead | 9.25 mm | 0.364 in | Surface Mount | 2.54 µm | 100 µin | Board to Cable/Wire | Male Pin | Nylon, Polyamide (PA) | General Purpose | 2 | 0.118 in | 3 mm | Board Lock, Pick and Place | Square | Brass | Shrouded - 4 Wall | 250 VDC | Locking Ramp | Tin-Lead | Solder | -40 °C | 105 ░C | Header | Varies by Wire Gauge | UL94 V-0 | 3 mm | 0.118 in | Black | 2.54 çm | 100 çin | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
794633 Series
Connector Header Surface Mount 10 position 0.118" (3.00mm)
