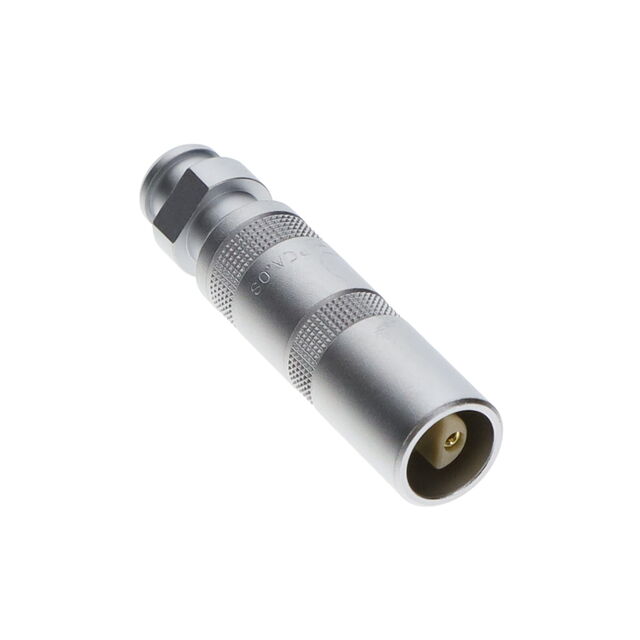

PCA.0S.302.CLLC42Z

Active

LEMO

CONN CIRC RCPT 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PCA.0S.302.CLLC42Z

Active

LEMO

CONN CIRC RCPT 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.18
		10	$ 22.92
		25	$ 21.93
		50	$ 21.23
		100	$ 20.52
		250	$ 19.39
		500	$ 18.82

Description

General part information

PCA.0S Series

2 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PCA.0S.302.CLLC42Z	PCA.0S Series

	-	-
Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	178, RG-174, 174A, 188A, 196A, 316B, 178B, RG-122, 174
Cable Opening	-	0.051 - 0.067 in
Cable Opening	-	1.3 - 4.2 mm
Cable Opening	-	2.2 - 5.7 mm
Cable Opening	-	0.087 - 0.126 in
Cable Opening	-	2.2 - 6.2 mm
Cable Opening	-	0.165 - 0.205 in
Cable Opening	-	5.2 mm
Cable Opening	-	0.205 - 0.224 in
Cable Opening [Max] [custom]	4.2 mm	4.2 mm
Cable Opening [Max] [custom]	0.165 in	0.087 - 0.244 in
Cable Opening [Min] [custom]	0.126 in	0.051 - 0.224 in
Cable Opening [Min] [custom]	3.2 mm	1.3 - 5.7 mm
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Triaxial, Coaxial
Connector Type	Female Sockets, Male Pins, Receptacle	Female Sockets, Male Pins, Receptacle, Receptacle, Female Sockets, Insert, Female Socket
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass, Alumel, Chromel, Constantan, Copper
Contact Termination	-	Solder
Current Rating (Amps)	10 A	4 - 10 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell, Insert Only, Requires Shell
Housing Color	-	Silver
Impedance	-	50 Ohms
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	-	1
Number of Positions	2	1 - 4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	302	302 - 403
Shield Termination	-	Clamp
Shielding	Shielded	Shielded

PCA.0S Series

CONN CIRC RCPT 4P GOLD SLDR CUP

Part	Shell Finish	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Orientation	Features	Shell Size - Insert	Primary Material	Ingress Protection	Fastening Type	Material Flammability Rating	Mounting Type	Contact Material	Insert Material	Connector Type	Color	Current Rating (Amps)	Shielding	Shell Material	Number of Positions	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [custom]
LEMO PCA.0S.304.CLLK47	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	304	Metal	IP50	Push-Pull	UL94 V-0	Free Hanging (In-Line)	Brass, Bronze	Polyetheretherketone (PEEK)	Female Sockets, Male Pins, Receptacle	Silver	7 A	Shielded	Brass	4
LEMO PCA.0S.302.CLLC17	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	302	Metal	IP50	Push-Pull	UL94 V-0	Free Hanging (In-Line)	Brass, Bronze	Polyetheretherketone (PEEK)	Female Sockets, Male Pins, Receptacle	Silver	10 A	Shielded	Brass	2	0.051 in, 0.067 in	1.3 mm, 1.7 mm
LEMO PCA.0S.302.CLLC32Z	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	302	Metal	IP50	Push-Pull	UL94 V-0	Free Hanging (In-Line)	Brass, Bronze	Polyetheretherketone (PEEK)	Female Sockets, Male Pins, Receptacle	Silver	10 A	Shielded	Brass	2			2.2 mm, 3.2 mm	0.087 in, 0.126 in
LEMO PCA.0S.302.CLLK62Z	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	302	Metal	IP50	Push-Pull	UL94 V-0	Free Hanging (In-Line)	Brass, Bronze	Polyetheretherketone (PEEK)	Female Sockets, Male Pins, Receptacle	Silver	10 A	Shielded	Brass	2					0.244 in	0.224 in	6.2 mm	5.7 mm
LEMO PCA.0S.304.CLLC32Z	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	304	Metal	IP50	Push-Pull	UL94 V-0	Free Hanging (In-Line)	Brass, Bronze	Polyetheretherketone (PEEK)	Female Sockets, Male Pins, Receptacle	Silver	7 A	Shielded	Brass	4			2.2 mm, 3.2 mm	0.087 in, 0.126 in
LEMO PCA.0S.302.CLLK52	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	302	Metal	IP50	Push-Pull	UL94 V-0	Free Hanging (In-Line)	Brass, Bronze	Polyetheretherketone (PEEK)	Female Sockets, Male Pins, Receptacle	Silver	10 A	Shielded	Brass	2		4.2 mm							0.165 in, 0.205 in	5.2 mm
LEMO PCA.0S.403.CTLC32	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	403	Metal	IP50	Push-Pull		Free Hanging (In-Line)	Bronze	Polytetrafluoroethylene (PTFE)	Receptacle, Female Sockets	Silver	4 A	Shielded	Brass	1			2.2 mm, 3.2 mm	0.087 in, 0.126 in
LEMO PCA.0S.302.CLLC37	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	302	Metal	IP50	Push-Pull	UL94 V-0	Free Hanging (In-Line)	Brass, Bronze	Polyetheretherketone (PEEK)	Female Sockets, Male Pins, Receptacle	Silver	10 A	Shielded	Brass	2					0.146 in	0.126 in	3.7 mm	3.2 mm
LEMO PCA.0S.403.CTLC27	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	403	Metal	IP50	Push-Pull		Free Hanging (In-Line)	Bronze	Polytetrafluoroethylene (PTFE)	Receptacle, Female Sockets	Silver	4 A	Shielded	Brass	1
LEMO PCA.0S.302.CLLC42	Chrome	Gold	-55 °C	250 °C	Brass, Chrome	Keyed	Backshell	302	Metal	IP50	Push-Pull	UL94 V-0	Free Hanging (In-Line)	Brass, Bronze	Polyetheretherketone (PEEK)	Female Sockets, Male Pins, Receptacle	Silver	10 A	Shielded	Brass	2					0.165 in	0.126 in		3.2 mm			4.2 mm
