MLF14FTC470R
ActiveStackpole Electronics Inc

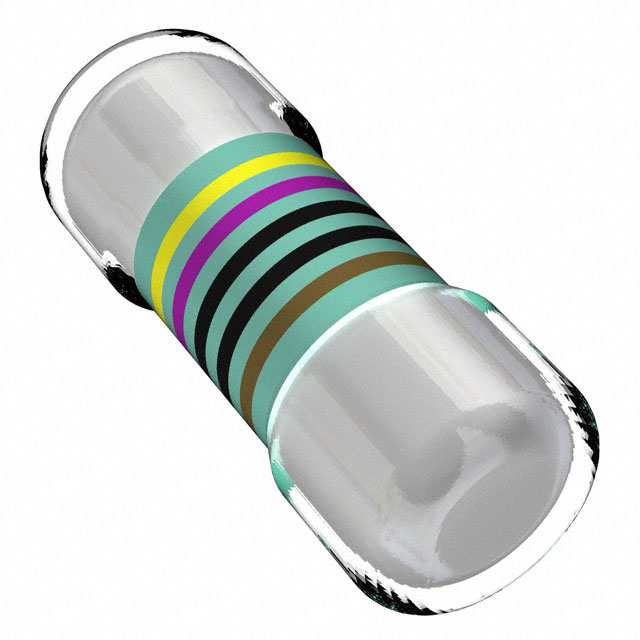

RES 470 OHM 1% 1/4W MELF 0204
MLF14FTC470R
ActiveStackpole Electronics Inc
RES 470 OHM 1% 1/4W MELF 0204
Description
General part information
MLF14FTC470R
470 Ohms ±1% 0.25W, 1/4W Chip Resistor MELF, 0204 Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MLF14FTC470R |
|---|---|
| Composition | Thin Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0204, MELF |
| Package Name | 0204 |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 470 Ohm |
| Size / Dimension Diameter | 0.055 in |
| Size / Dimension Length | 0.138 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
