SM5805

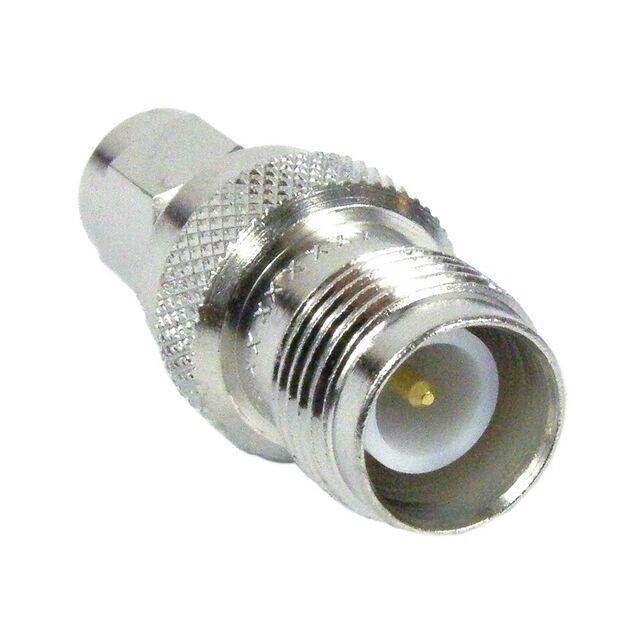

Adapter Coaxial Connector SMA Plug, Male Pin To RP-TNC Jack, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM5805 |
|---|---|
| Adapter Series | SMA to RP-TNC |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, SMA Plug |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | RP-TNC Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
