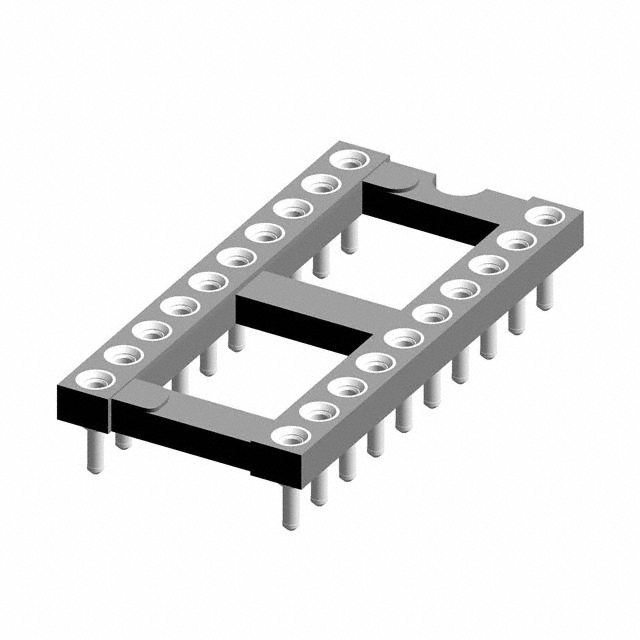

CONN IC DIP SOCKET 20POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDIL/SIL/TO Socket Catalog

115-87-420-41-003101

Active

Preci-Dip

CONN IC DIP SOCKET 20POS GOLD

Deep-Dive with AI

DocumentsDIL/SIL/TO Socket Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1800	$ 1.07

Description

General part information

115-87 Series

20 (2 x 10) Pos DIP, 0.4" (10.16mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

DIL/SIL/TO Socket Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	115-87-420-41-003101	115-87 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	Flash	Flash
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	1 A	1 A
Features	Open Frame	Open Frame
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	20	8 - 64
Number of Positions or Pins (Grid)	-	2 x 5, 2 x 16
Number of Positions or Pins (Grid)	-	10
Number of Positions or Pins (Grid)	-	4
Number of Positions or Pins (Grid)	-	3 - 20
Number of Positions or Pins (Grid)	-	2
Number of Positions or Pins (Grid)	-	32
Number of Positions or Pins (Grid)	-	6 - 50
Number of Positions or Pins (Grid)	-	25
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Termination Post Length	2.41 mm	2.41 mm
Termination Post Length	0.095 in	0.095 in
Type	0.4 in	0.2 - 0.9 in
Type	10.16 mm	5.08 - 22.86 mm
Type	DIP	DIP
