M186EQ
ActiveBANNER ENGINEERING
EZ-BEAM M18 SERIES: EMITTER; RAN
M186EQ
ActiveBANNER ENGINEERING
EZ-BEAM M18 SERIES: EMITTER; RAN
Description
General part information
M186EQ

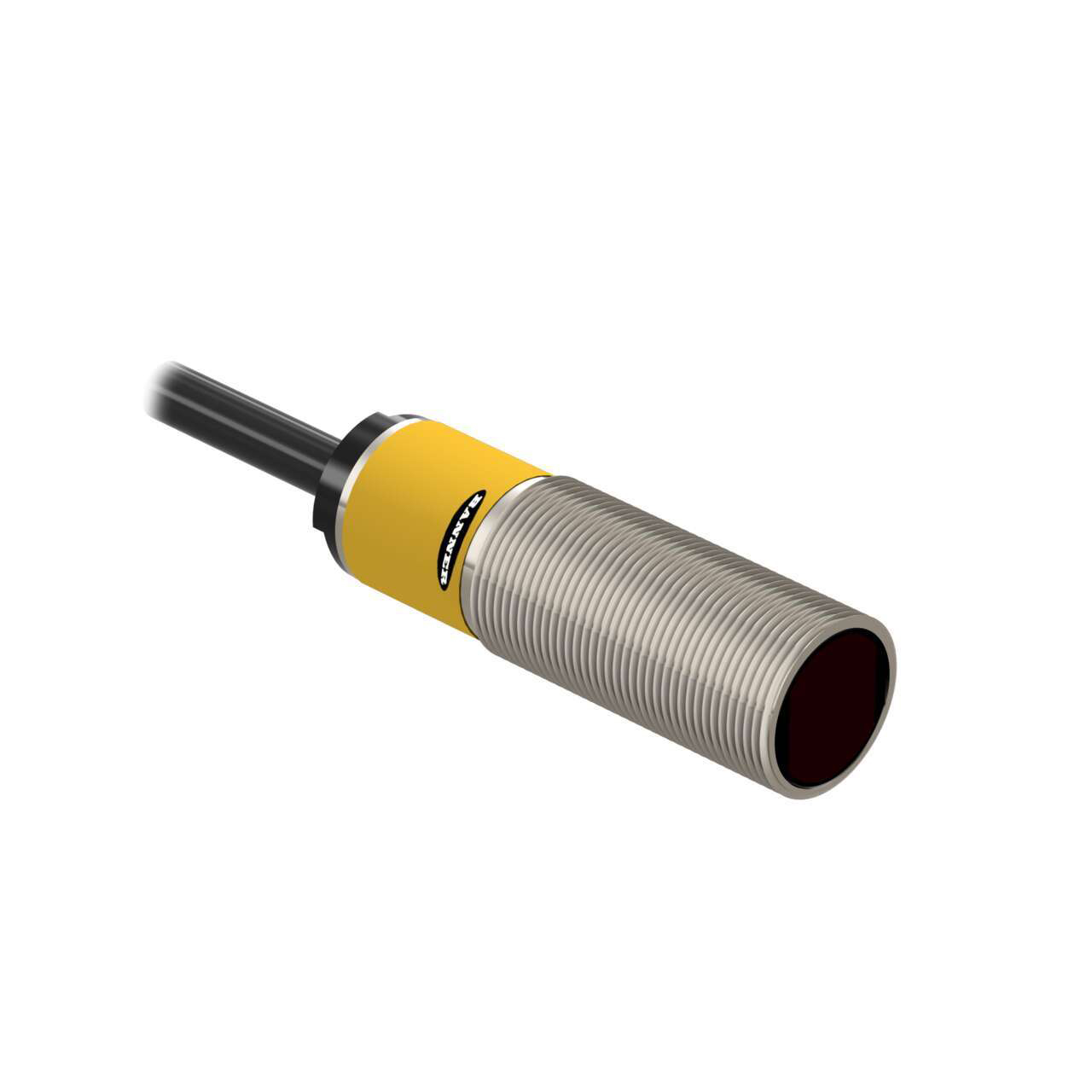

Through-Beam Optical Sensor 787.402" (20m)
Technical Specifications
Parameters and characteristics for this part
| Specification | M186EQ |
|---|---|
| Connection Method | Connector, M12 |
| Ingress Protection | IP69K, NEMA 6P |
| Light Source | Infrared |
| Light Source Wavelength (Infrared) | 950 nm |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Sensing Distance | 787.402 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
