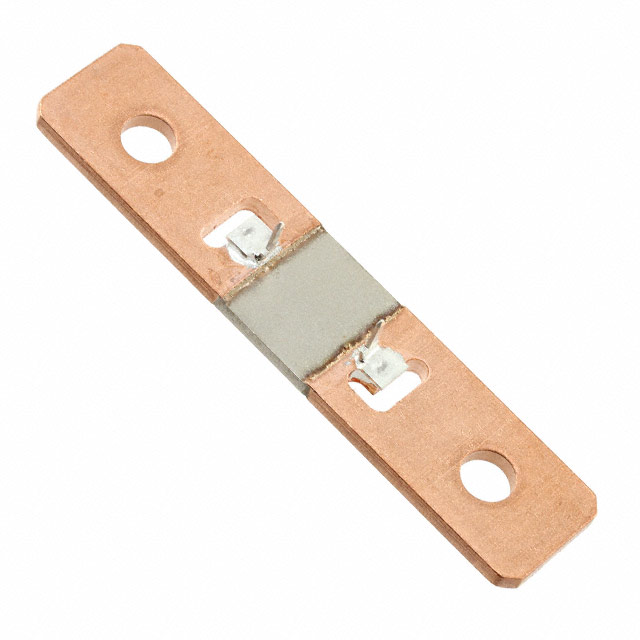

WSBS85181L000JT35
ActiveVishay Dale
RESISTOR SHUNT 0.001 OHM 5% 20W
WSBS85181L000JT35
ActiveVishay Dale
RESISTOR SHUNT 0.001 OHM 5% 20W
Description
General part information
WSBS85181L000JT35
1 mOhms ±5% 20W Shunt, Battery Specialized Resistor Metal Element ±25ppm/°C Shunt Fixture, 60mm Pitch
Technical Specifications
Parameters and characteristics for this part
| Specification | WSBS85181L000JT35 |
|---|---|
| Composition | Metal Element |
| Mounting Size | 60 mm |
| Mounting Type | Shunt Fixture, Pitch |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Power (Watts) | 20 W |
| Resistance | 1 mOhms |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 5 % |
| Type | Battery, Shunt |
