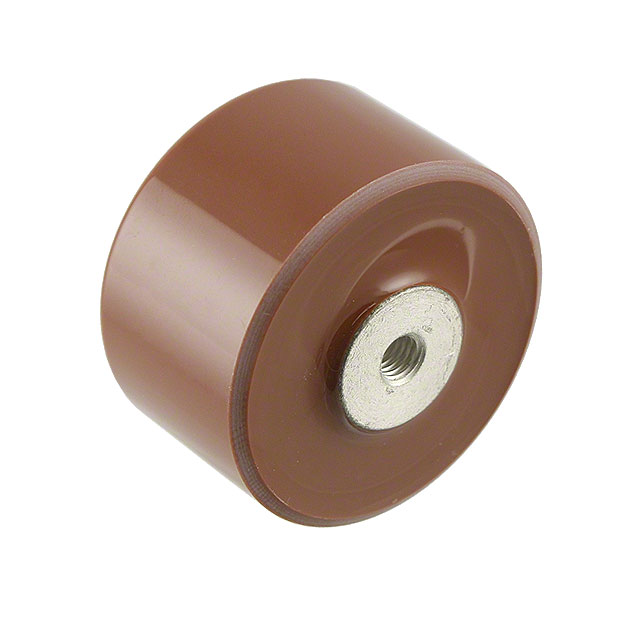

UHV-4A
ActiveTDK Corporation
CAP CER 940PF 30KV Z5T DISK
UHV-4A
ActiveTDK Corporation
CAP CER 940PF 30KV Z5T DISK
Description
General part information
UHV-4A
940 pF ±10% 30000V (30kV) Ceramic Capacitor Z5T Disk, Metal Fitting - Threaded
Technical Specifications
Parameters and characteristics for this part
| Specification | UHV-4A |
|---|---|
| Applications | General Purpose |
| Capacitance | 940 pF |
| Features | Low Dissipation Factor, High Voltage |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Disk, Metal Fitting - Threaded |
| Size / Dimension Diameter | 1.496 in |
| Size / Dimension Length | 1.063 in |
| Temperature Coefficient | Z5T |
| Tolerance | 10 % |
| Voltage - Rated | 30 kV |
