Description
General part information

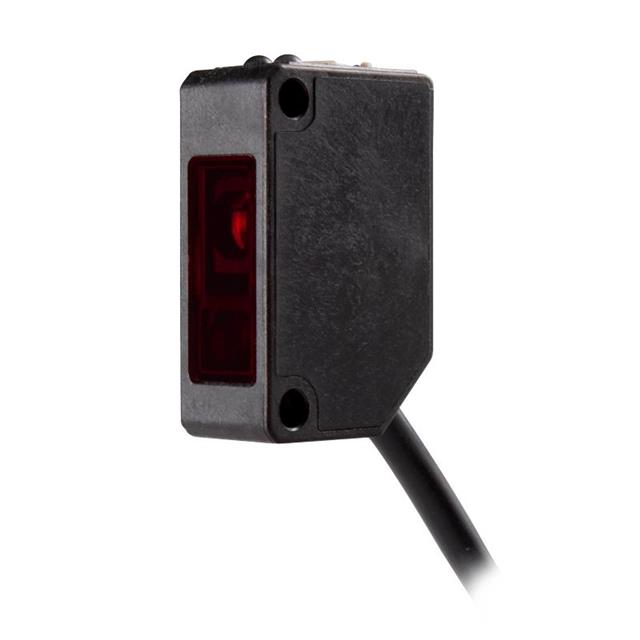

BGS-Z30P
Background Suppression Optical Sensor 0.394" ~ 11.811" (10mm ~ 300mm) PNP - Open Collector, Light-ON\Dark-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | BGS-Z30P |
|---|---|
| Adjustment Turns | 4 turn |
| Adjustment Type | Adjustable, Potentiometer |
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Red LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Light-ON\Dark-ON, PNP - Open Collector |
| Response Time | 500 µs |
| Sensing Distance Maximum | 11.811 " |
| Sensing Distance Minimum | 0.394 " |
| Sensing Method | Background Suppression |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
