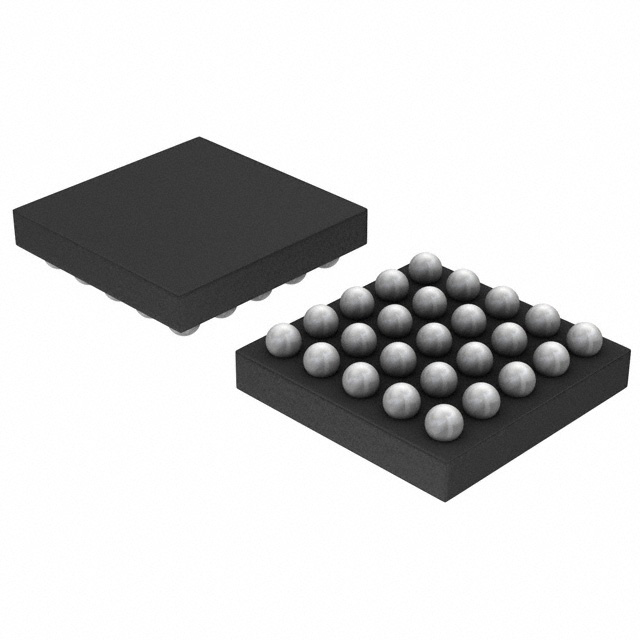

EMIF10-COM01C2
ActiveSTMicroelectronics
FILTER RC(PI) 200 OHM/45PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
EMIF10-COM01C2
ActiveSTMicroelectronics
FILTER RC(PI) 200 OHM/45PF SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EMIF10-COM01C2 | EMIF10 Series |
|---|---|---|
| Applications | Data Lines for Mobile Devices | Data Lines for Mobile Devices |
| ESD Protection | True | True |
| Filter Order | 2nd | 2nd |
| Height [z] | 0.03 in | 0.026 - 0.03 in |
| Height [z] | 0.76 mm | 0.65 - 0.76 mm |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Channels [custom] | 10 | 10 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 25-WFBGA, FCBGA | 24-WFBGA, FCBGA, 25-WFBGA |
| Resistance - Channel (Ohms) | 200 Ohms | 70 - 200 Ohms |
| Size / Dimension | - | 0.076 in |
| Size / Dimension | - | 0.076 in |
| Size / Dimension [x] | 0.095 ", 2.41 mm | 0.095 - 2.41 mm |
| Size / Dimension [y] | 2.41 mm, 0.095 " | 0.095 - 2.41 mm |
| Technology | RC (Pi) | RC (Pi) |
| Type | Low Pass | Low Pass |
| Values | - | 30 - 70 Ohms |
| Values [custom] | 200 Ohms | 200 Ohms |
| Values [custom] | 45 pF | 45 pF |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.42 | |
EMIF10 Series
FILTER RC(PI) 70 OHM/30PF SMD
| Part | ESD Protection | Type | Technology | Number of Channels [custom] | Filter Order | Resistance - Channel (Ohms) | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Mounting Type | Values | Height [z] | Height [z] | Values [custom] | Values [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics EMIF10-LCD02F3 | Low Pass | RC (Pi) | 10 | 2nd | 70 Ohms | 85 °C | -40 °C | Data Lines for Mobile Devices | 0.076 in | 1.92 mm | 1.92 mm | 0.076 in | 24-WFBGA, FCBGA | Surface Mount | 30 pF, 70 Ohms | 0.026 in | 0.65 mm | |||
STMicroelectronics EMIF10-COM01C2 | Low Pass | RC (Pi) | 10 | 2nd | 200 Ohms | 85 °C | -40 °C | Data Lines for Mobile Devices | 0.095 ", 2.41 mm | 0.095 ", 2.41 mm | 25-WFBGA, FCBGA | Surface Mount | 0.03 in | 0.76 mm | 200 Ohms | 45 pF |
Description
General part information
EMIF10 Series
RC (Pi) EMI Filter 2nd Order Low Pass 10 Channel R = 200Ohms, C = 45pF (Total) 25-WFBGA, FCBGA
