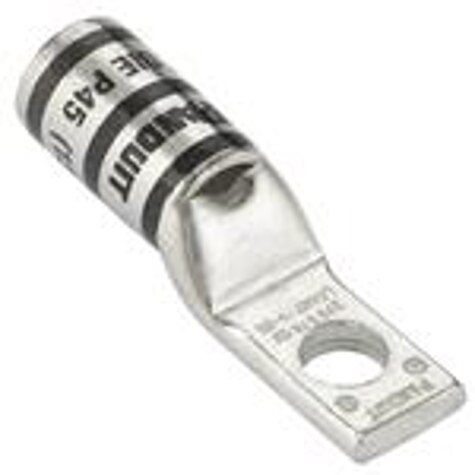

Specification	LCAN1-10-E

Color	Green
Insulation	Non-Insulated
Length - Overall	1.69 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Tab Thickness	0.11 in
Terminal Style	Single Stud Hole
Terminal Type	Rectangular Tongue
Termination	Barrel, Crimb
Width - Outer Edges	0.47 in
Wire Gauge	1 AWG

LCAN Series

Part	Diameter - Ring ID	Diameter - Barrel ID	Diameter - Barrel OD	Contact Material	Contact Finish	Wire Gauge	Mounting Type	Insulation	Tab Thickness	Stud/Tab Size	Width - Outer Edges	Terminal Type	Termination	Color	Terminal Style	Stud/Tab Size (Type)	Stud/Tab Size	Wire Gauge (MCM)	Length - Overall
Panduit Corp LCAN2/0-14H-X	0.27 in	0.45 in	0.58 in	Copper	Electro-Tin	2/0 AWG	45° Angle Free Hanging (In-Line)	Non-Insulated	0.13 in	0.25 Stud	0.58 in	Rectangular Tongue	Barrel Crimb	Black	Single Stud Hole
Panduit Corp LCAN4/0-56F-X	0.34 in	0.57 in	0.71 in	Copper	Electro-Tin	4/0 AWG	Free Hanging (In-Line) Right Angle	Non-Insulated	0.15 in	0.3125 in	0.71 in	Rectangular Tongue	Barrel Crimb	Purple	Single Stud Hole	Stud	16 Stud 5 Stud
Panduit Corp LCAN4/0-56H-X	0.34 in	0.57 in	0.71 in	Copper	Electro-Tin	4/0 AWG	45° Angle Free Hanging (In-Line)	Non-Insulated	0.14 in	0.3125 in	0.71 in	Rectangular Tongue	Barrel Crimb	Purple	Single Stud Hole	Stud	16 Stud 5 Stud
Panduit Corp LCAN400-38-6	0.41 in	0.76 in	0.95 in	Copper	Electro-Tin		Free Hanging (In-Line)	Non-Insulated	0.23 in	0.375 in	0.95 in	Rectangular Tongue	Barrel Crimb	Blue	Single Stud Hole		3 Stud 8 Stud	400 MCM	3.24 in
Panduit Corp LCAN1/0-14F-X	0.27 in	0.39 in	0.52 in	Copper	Electro-Tin	1/0 AWG	Free Hanging (In-Line) Right Angle	Non-Insulated	0.13 in	0.25 Stud	0.52 in	Rectangular Tongue	Barrel Crimb	Pink	Single Stud Hole
Panduit Corp LCAN4/0-38H-X
Panduit Corp LCAN1/0-14H-X	0.27 in	0.39 in	0.52 in	Copper	Electro-Tin	1/0 AWG	45° Angle Free Hanging (In-Line)	Non-Insulated	0.12 in	0.25 Stud	0.52 in	Rectangular Tongue	Barrel Crimb	Pink	Single Stud Hole
Panduit Corp LCAN2-14F-Q	0.27 in	0.28 in	0.42 in	Copper	Electro-Tin	2 AWG	Free Hanging (In-Line) Right Angle	Non-Insulated	0.1 in	0.25 Stud	0.42 in	Rectangular Tongue	Barrel Crimb	Brown	Single Stud Hole
Panduit Corp LCAN6-6-L	0.15 in	0.22 in	0.31 in	Copper	Electro-Tin	6 AWG	Free Hanging (In-Line)	Non-Insulated	0.1 in	6 Stud	0.31 in	Rectangular Tongue	Barrel Crimb	Blue	Single Stud Hole				1.51 in
Panduit Corp LCAN2-14H-Q	0.27 in	0.31 in	0.42 in	Copper	Electro-Tin	2 AWG	45° Angle Free Hanging (In-Line)	Non-Insulated	0.1 in	0.25 Stud	0.42 in	Rectangular Tongue	Barrel Crimb	Brown	Single Stud Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

LCAN1-10-E | Datasheet
