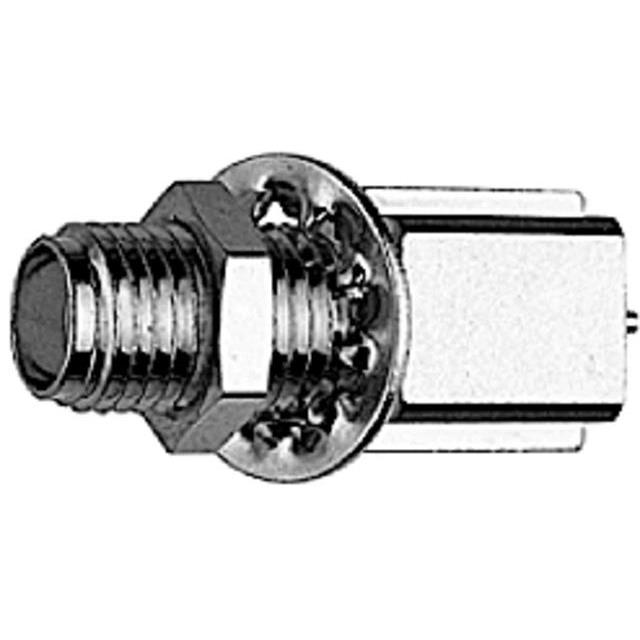

100024694
ActiveTelegartner Inc
SMA JCK STR BKHD SD PCB AU EDGE
100024694
ActiveTelegartner Inc
SMA JCK STR BKHD SD PCB AU EDGE
Description
General part information
100024694
SMA Connector Jack, Female Socket 50 Ohms Board Edge, End Launch; Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 100024694 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Copper Alloy |
| Connector Style | SMA |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Board Edge, End Launch, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Solder |
