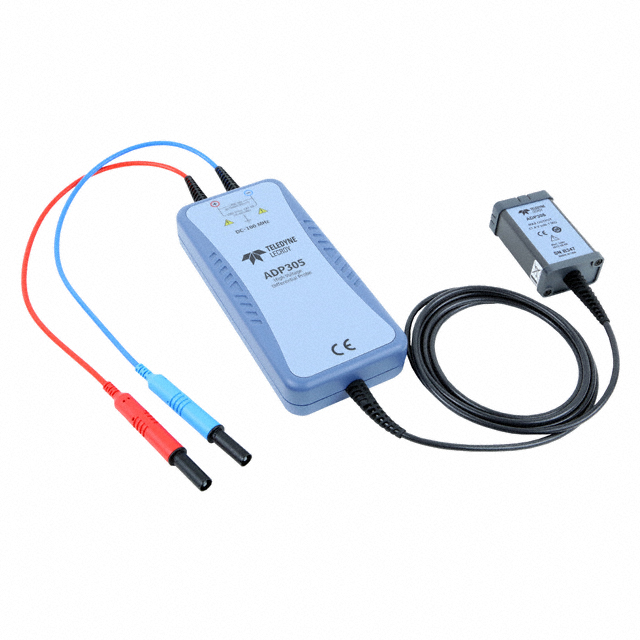

ADP305
ObsoleteTeledyne LeCroy
OSCOPE PROBE X100/X1K 100MHZ 8M
ADP305
ObsoleteTeledyne LeCroy
OSCOPE PROBE X100/X1K 100MHZ 8M
Description
General part information
ADP305
100:1, 1000:1 Voltage Probe, Differential 100MHz 78.740" (2000.00mm) Oscilloscope Probe Test Lead 8M Input Resistance CAT III 1000V
Technical Specifications
Parameters and characteristics for this part
| Specification | ADP305 |
|---|---|
| Attenuation Value | 1000:1, 100:1 |
| Attenuation Value | 100 :1, 1000 :1 |
| Bandwidth | 100 MHz |
| Cable Length | 78.74 in |
| Capacitance - Input | 6 pF |
| Includes | Plunger Hook Tip, Clips, Manual, Hook and Loop Strap, Case, Spade Terminal |
| Resistance - Input | 8 MOhm |
| Type | Voltage Probe, Differential |
| Voltage - Max (CAT III) | 1000 V |
| Voltage - Max Category | CAT III |
