Description
General part information
PN7070

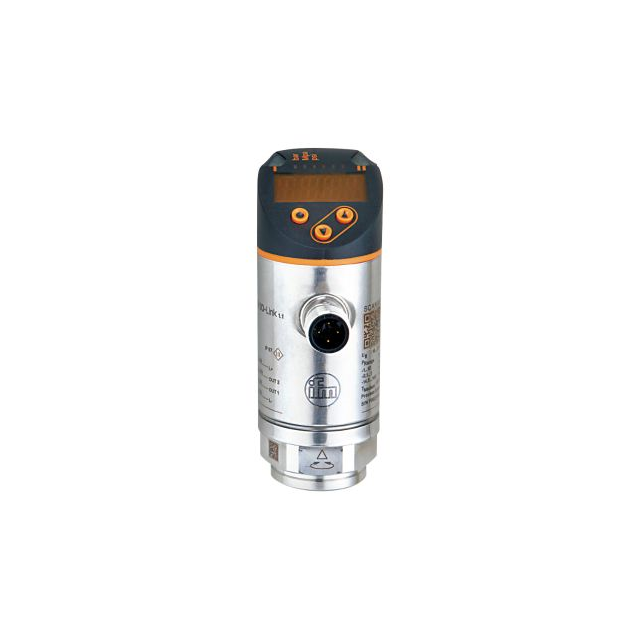

Pressure Sensor 5801.51PSI (40000kPa) Male - 1/4" (6.35mm) BSPP Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PN7070 |
|---|---|
| Accuracy | 0.5 % RH |
| Maximum Pressure | 24656 PSI |
| Operating Pressure | 5801.51 PSI |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NPN, NO, PNP- NC |
| Package / Case | Module |
| Pin Count | 4 |
| Port Diameter | 0.25 " |
| Port Feature | BSPP |
| Port Gender | Male |
| Port Style | Threaded |
| Termination Style | M12 |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 18 VAC |
