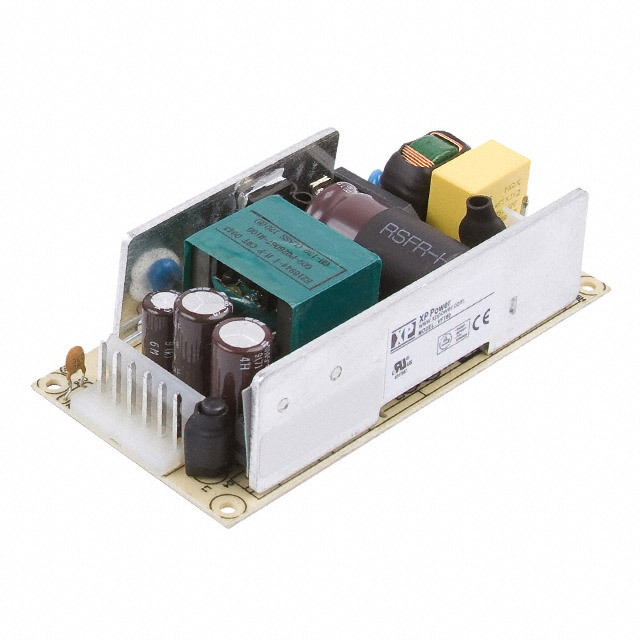

VFT80US12

Obsolete

XP Power

AC-DC POWER MODULES ROHS

Search across all available documentation for this part.

Obsolete

XP Power

AC-DC POWER MODULES ROHS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VFT80US12	VFT80 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output 1	6.67 A	6.67 - 12 A
Efficiency	87 %	80 - 87 %
Features	Adjustable Output, Universal Input	Adjustable Output, Universal Input, Remote Sense
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	80 W	80 W
Standard Number	62368-1	62368-1
Type	Open Frame	Open Frame
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	12 V	5 - 12 V

AC-DC POWER MODULES ROHS

Part	Mounting Type	Features	Voltage - Isolation	Minimum Load Required	Current - Output 1	Voltage - Output 1	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Type	Efficiency	Applications	Standard Number
XP Power VFT80US12	Chassis Mount	Adjustable Output, Universal Input	3000 V		6.67 A	12 V	1	-10 °C	70 °C	80 W	Open Frame	87 %	ITE (Commercial)	62368-1
XP Power VFT80US05	Chassis Mount	Adjustable Output, Remote Sense, Universal Input	3000 V		12 A	5 V	1	-10 °C	70 °C	80 W	Open Frame	80 %	ITE (Commercial)	62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
