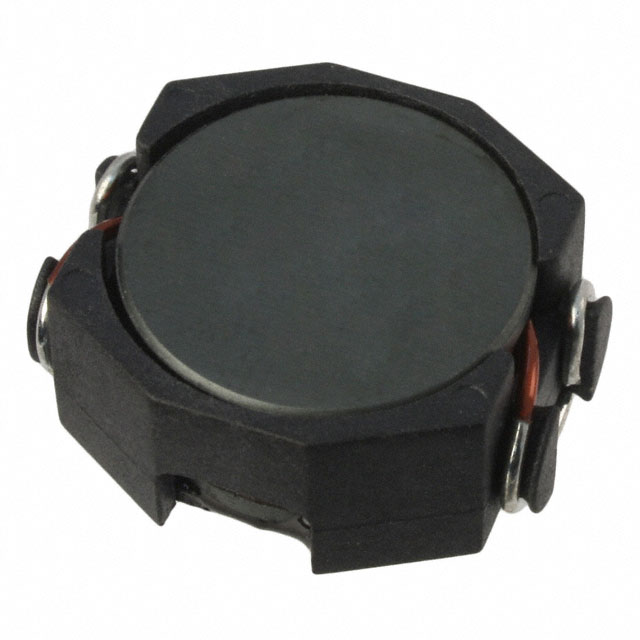

PB2020.333NL
ActivePulse Electronics
FIXED IND 33UH 6.5A 29 MOHM SMD
PB2020.333NL
ActivePulse Electronics
FIXED IND 33UH 6.5A 29 MOHM SMD
Description
General part information
PB2020.333NL
33 µH Unshielded Wirewound Inductor 6.5 A 29mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PB2020.333NL |
|---|---|
| Current - Saturation (Isat) | 10 A |
| Current Rating | 6.5 A |
| DC Resistance (DCR) (Max) | 29 mOhm |
| Height - Seated (Max) | 0.4 in |
| Inductance | 33 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.94 in |
| Size / Dimension Width | 0.82 in |
| Tolerance | 20 % |
| Type | Wirewound |
