DLR1S22K-F
ObsoleteCornell Dubilier Knowles
CAP FILM 0.022UF 10% 100VDC RAD
DLR1S22K-F
ObsoleteCornell Dubilier Knowles
CAP FILM 0.022UF 10% 100VDC RAD
Description
General part information
DLR1S22K-F

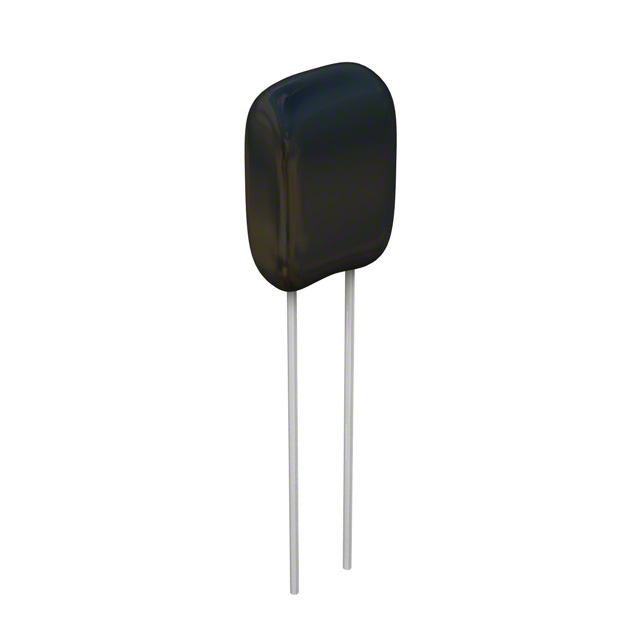

0.022 µF Film Capacitor 63V 100V Polyester Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | DLR1S22K-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.022 µF |
| Dielectric Material | Polyester |
| Height - Seated (Max) | 0.453 in |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.315 in |
| Size / Dimension Width | 0.157 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 63 V |
| Voltage Rating - DC | 100 V |
