1430-0.5-5
Active3M (TC)

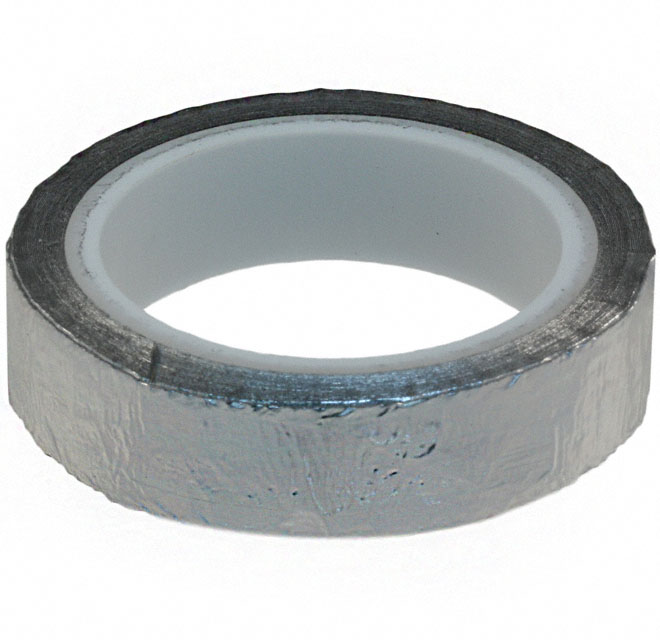

TAPE ALUM FOIL SILVER 1/2"X5YDS
Deep-Dive with AI
Search across all available documentation for this part.
1430-0.5-5
Active3M (TC)
TAPE ALUM FOIL SILVER 1/2"X5YDS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1430-0.5-5 |
|---|---|
| Adhesive | Acrylic |
| Backing, Carrier | Dead Soft, Aluminum |
| Color | Silver |
| Length | 4.6 m |
| Length | 15 ft |
| Length | 5 yd |
| Shelf Life | 18 Months |
| Shelf Life Start | Date of Manufacture |
| Storage/Refrigeration Temperature [Max] | 80 °F, 27 °C |
| Storage/Refrigeration Temperature [Min] | 60 °F, 16 °C |
| Tape Type | Aluminum Foil |
| Temperature Range [Max] | 300 °F |
| Temperature Range [Max] | 149 °C |
| Temperature Range [Min] | -54 °C |
| Temperature Range [Min] | -65 °F |
| Thickness | 5.5 mils |
| Thickness | 0.14 mm |
| Thickness | 0.0055 in |
| Thickness - Adhesive [x] | 0.013 mm |
| Thickness - Adhesive [x] | 0.0005 " |
| Thickness - Adhesive [x] | 0.5 mils |
| Thickness - Backing, Carrier [custom] | 0.005 " |
| Thickness - Backing, Carrier [custom] | 5 mils |
| Thickness - Backing, Carrier [custom] | 0.127 mm |
| Usage | Sealing |
| Width | 0.5 in |
| Width | 12.7 mm |
| Width | 0.5 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.35 | |
| 10 | $ 8.59 | |||
| 25 | $ 8.23 | |||
| 100 | $ 7.84 | |||
Description
General part information
1430-0.5-5
Aluminum Foil Tape Acrylic Adhesive Silver 0.50" (12.70mm) 1/2" X 15' (4.6m) 5 yds
Documents
Technical documentation and resources
No documents available
