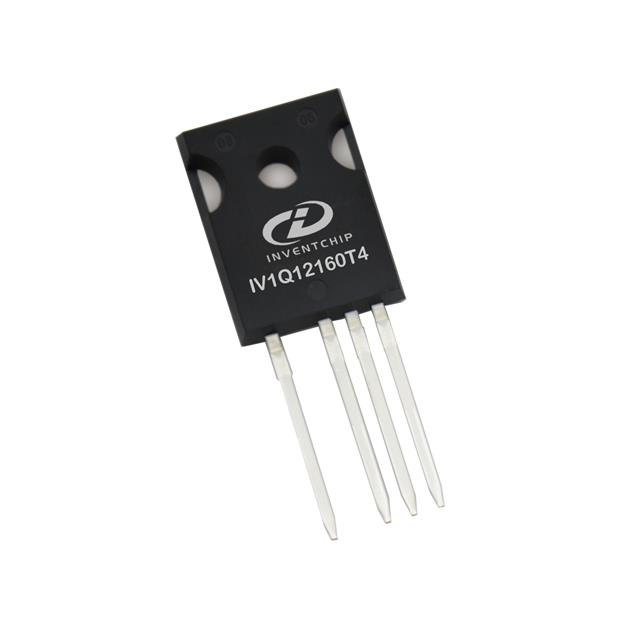

Specification	IV1Q12160T4

Current - Continuous Drain (Id) (Tc)	20 A
Drain to Source Voltage (Vdss)	1200 V
Drive Voltage (Max Rds On, Min Rds On)	20 V
FET Type	N-Channel
Gate Charge (Max)	43 nC
Input Capacitance (Ciss) (Max)	885 pF
Mounting Type	Through Hole
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-55 °C
Package / Case	TO-247-4
Package Name	TO-247-4
Power Dissipation (Max)	138 W
Rds On (Max)	195 mOhm
Technology	SiCFET (Silicon Carbide)
Vgs (Max) Negative	-5 V
Vgs (Max) Positive	20 V
Vgs(th) (Max)	2.9 V
