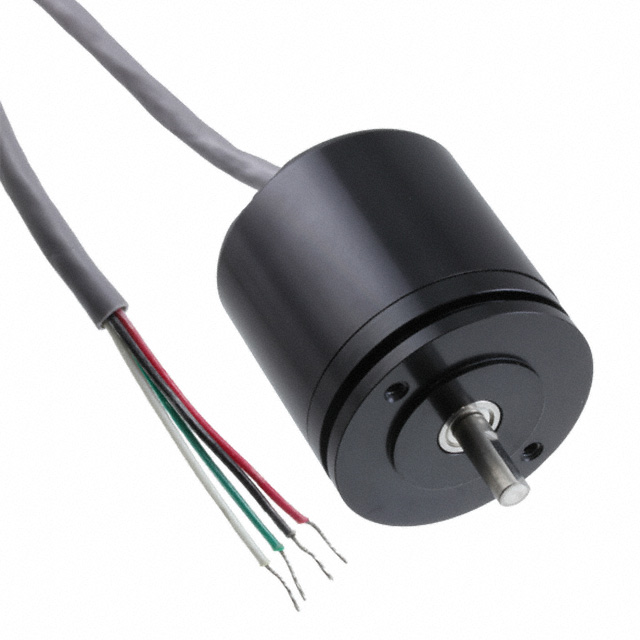

02181600-120

Active

TE Connectivity Measurement Specialties

SENSOR ROTARY 120DEG WIRE LEADS

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR ROTARY 120DEG WIRE LEADS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	02181600-120	0218 Series

Actuator Type	Flatted Shaft	Flatted Shaft, Round Shaft
For Measuring	Rotary Position	Rotary Position
Linearity	0.25 %	0.25 - 0.5 %
Mounting Type	Custom	Custom
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Operating Temperature [custom]	-18 °C, 77 °C	-18 - 77 °C
Output	Analog Voltage	Analog Voltage
Output Signal	Clockwise Increase	Clockwise Increase
Package / Case	Module	Module, Cylinder
Rotation Angle - Electrical, Mechanical [Max]	120 °	120 °
Rotation Angle - Electrical, Mechanical [Min]	0 °	0 °
Technology	Inductive	Inductive
Termination Style	Wire Leads	Wire Leads

SENSOR ROTARY 120DEG WIRE LEADS

Part	Output Signal	Linearity	Operating Temperature [custom]	Mounting Type	For Measuring	Rotation Angle - Electrical, Mechanical [Min]	Rotation Angle - Electrical, Mechanical [Max]	Termination Style	Package / Case	Actuator Type	Technology	Output	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Measurement Specialties 02181600-120	Clockwise Increase	0.25 %	-18 °C, 77 °C	Custom	Rotary Position	0 °	120 °	Wire Leads	Module	Flatted Shaft	Inductive	Analog Voltage
TE Connectivity Measurement Specialties 02183000-000	Clockwise Increase	0.5 %			Rotary Position	0 °	120 °	Wire Leads	Cylinder	Round Shaft	Inductive	Analog Voltage	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Inductive Sensor Rotary Position Flatted Shaft Wire Leads
