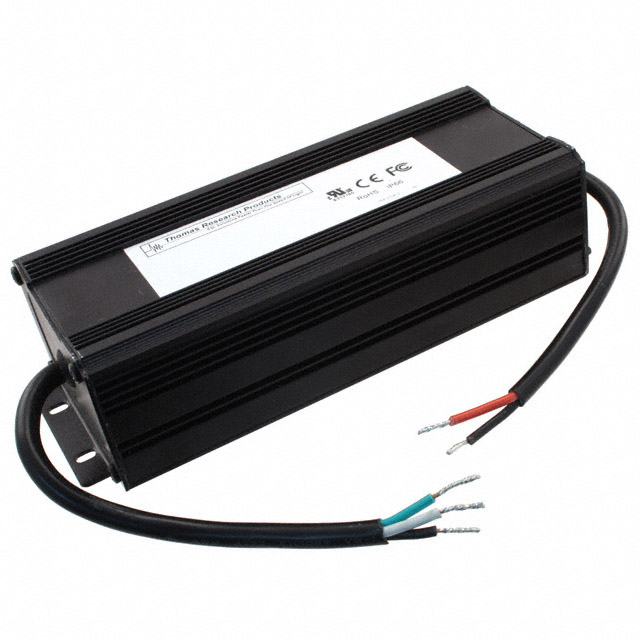

LED75W-015-C5000
ObsoleteThomas Research Products
LED DRIVER CC AC/DC 5-15V 5A
LED75W-015-C5000
ObsoleteThomas Research Products
LED DRIVER CC AC/DC 5-15V 5A
Description
General part information
LED75W-015-C5000
5A 5 ~ 15V Constant Current LED Driver AC DC Converter Topology 1 Output
Technical Specifications
Parameters and characteristics for this part
| Specification | LED75W-015-C5000 |
|---|---|
| Approval Agency | cULus, CE |
| Current - Output (Max) | 5 A |
| Efficiency | 86 % |
| Features | SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 75 W |
| Ratings | IP66 |
| Size / Dimension Height | 1.83 in |
| Size / Dimension Length | 6.42 in |
| Size / Dimension Width | 2.81 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) | 305 V |
| Voltage - Input (Min) | 90 VAC |
| Voltage - Output (Max) | 15 V |
| Voltage - Output (Min) | 5 V |
