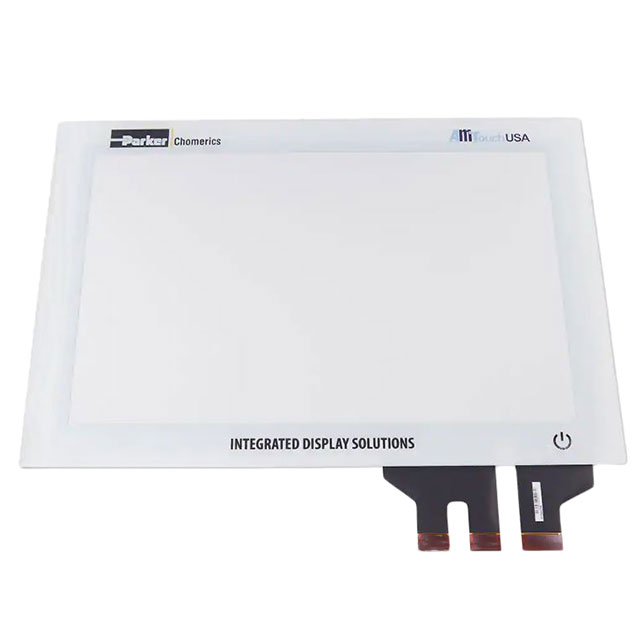

40-76-MMX-084NPC-HBSVGA-O
ActiveParker Chomerics
8.4? EMI LCD W/ PCAP TOUCH
Deep-Dive with AI
Search across all available documentation for this part.
40-76-MMX-084NPC-HBSVGA-O
ActiveParker Chomerics
8.4? EMI LCD W/ PCAP TOUCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 40-76-MMX-084NPC-HBSVGA-O | 40-76 Series |
|---|---|---|
| Controller Type | - | A94-23030-600, A94-01415U-100 |
| Diagonal Screen Size | 213.36 mm | 177.8 - 307.34 mm |
| Diagonal Screen Size | 8.4 in | 7 - 12.1 in |
| Display Mode | Transmissive | Transmissive |
| Display Type | TFT - Color | TFT - Color |
| Dot Pixels | - | 640 - 1024 |
| Dot Pixels | - | 480 - 768 |
| Graphics Color | Green, Red, Blue | Green, Red, Blue |
| Interface | USB, LVDS, I2C | USB, LVDS, I2C |
| Touchscreen | Capacitive | Resistive, Capacitive |
| Viewing Area | - | 91.44 mm |
| Viewing Area [x] | 170.4 mm | 152.4 - 210.43 mm |
| Viewing Area [y] | 127.8 mm | 127.8 - 157.82 mm |
40-76 Series
LCD DISPLAY TFT 10.4" 1024X768
| Part | Dot Pixels [x] | Dot Pixels [y] | Interface | Diagonal Screen Size | Diagonal Screen Size | Controller Type | Display Type | Touchscreen | Viewing Area [x] | Viewing Area [y] | Display Mode | Graphics Color | Viewing Area [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Parker Chomerics 40-76-MMX-104N5W-HBDXGA-A | 1024 | 768 | LVDS, USB | 10.4 in | 264.16 mm | A94-23030-600 | TFT - Color | Resistive | 210.43 mm | 157.82 mm | Transmissive | Blue, Green, Red | |
Parker Chomerics 40-76-MMX-084NPC-HBSVGA-O | I2C, LVDS, USB | 8.4 in | 213.36 mm | TFT - Color | Capacitive | 170.4 mm | 127.8 mm | Transmissive | Blue, Green, Red | ||||
Parker Chomerics 40-76-MMX-121NPC-HBDXGA-O | 1024 | 768 | I2C, LVDS, USB | 12.1 in | 307.34 mm | TFT - Color | Capacitive | Transmissive | Blue, Green, Red | ||||
Parker Chomerics 40-76-MMX-070WPC-HBWVGA-O | 640 pixels | 480 pixels | I2C, LVDS, USB | 7 in | 177.8 mm | TFT - Color | Capacitive | 152.4 mm | Transmissive | Blue, Green, Red | 91.44 mm | ||
Parker Chomerics 40-76-MMX-121N5W-HBDXGA-A | 1024 | 768 | LVDS, USB | 12.1 in | 307.34 mm | A94-01415U-100 | TFT - Color | Resistive | Transmissive | Blue, Green, Red | |||
Parker Chomerics 40-76-MMX-104NPC-HBDXGA-O | 1024 | 768 | I2C, LVDS, USB | 10.4 in | 264.16 mm | TFT - Color | Capacitive | 210.43 mm | 157.82 mm | Transmissive | Blue, Green, Red | ||
Parker Chomerics 40-76-NAX-121NPC-HBDXGA-O | 1024 | 768 | I2C, LVDS, USB | 12.1 in | 307.34 mm | TFT - Color | Capacitive | Transmissive | Blue, Green, Red |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
40-76 Series
Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I2C, LVDS, USB 8.4" (213.36mm) 800 x 600 (SVGA)
