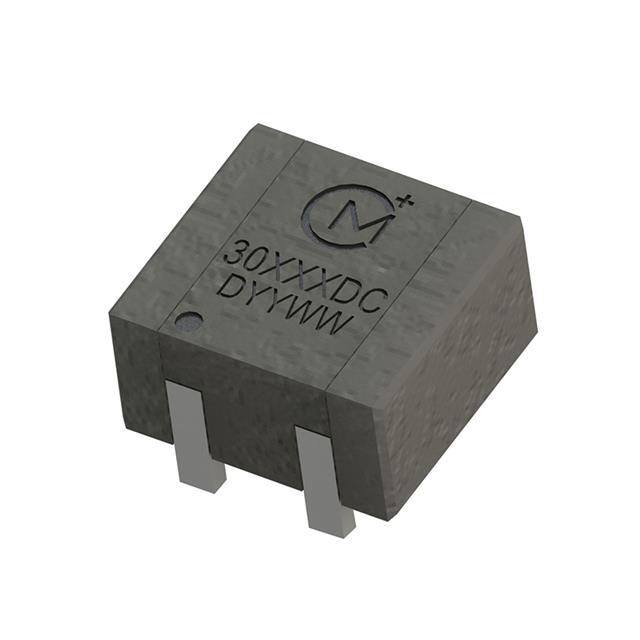

30161DC
ActiveMurata Electronics
INDUCTOR POWER UNSHIELDED WIREWOUND 0.155UH 15% 100KHZ 40A 0.00028OHM DCR T/R
30161DC
ActiveMurata Electronics
INDUCTOR POWER UNSHIELDED WIREWOUND 0.155UH 15% 100KHZ 40A 0.00028OHM DCR T/R
Description
General part information
30161DC
155 nH Unshielded Inductor 40 A 0.28mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | 30161DC |
|---|---|
| Current - Saturation (Isat) | 46 A |
| Current Rating | 40 A |
| DC Resistance (DCR) | 0.28 mOhm |
| Height - Seated (Max) | 0.299 in |
| Inductance | 155 nH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.433 in |
| Size / Dimension Width | 0.406 in |
| Tolerance | 10 % |
