PAT-04-NL-F-20-D-A

Active

FiberSource, Inc

FIBER OPTIC CBL LC-SC DUPLEX 4M

Search across all available documentation for this part.

Active

FiberSource, Inc

FIBER OPTIC CBL LC-SC DUPLEX 4M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

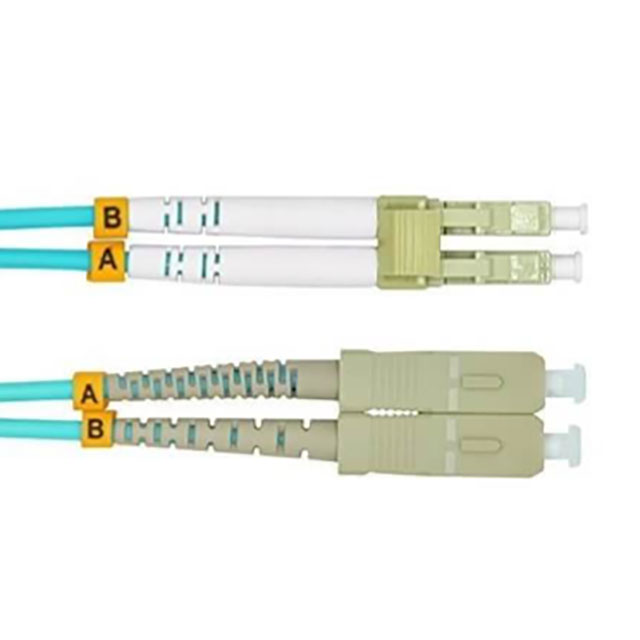

Cable Fiber Optic LC Duplex To SC Duplex 50/125 13.1' (4.0m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PAT-04-NL-F-20-D-A	PAT-04 Series

1st Connector	LC Duplex	SC Duplex, LC Duplex, SC/UPC
2nd Connector	SC Duplex	SC Duplex, SC/UPC, LC Duplex, LC/PPC
Cable Diameter [diameter]	2 mm	2 mm
Cable Diameter [diameter]	0.08 in	0.08 in
Color - Cable	-	Yellow
Color - Connectors	Blue	Blue
Fiber Type	50/125	50/125
Insertion Loss	-	0.2 - 0.3 dB
Length - Overall [x]	13.1 '	13.1 '
Length - Overall [x]	4 m	4 m
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Return Loss	-	55 - 65 dB
Type	Duplex, OM3, Multimode	Singlemode, Duplex, OM3, Multimode, Simplex

FIBER OPTIC CBL SC-SC DUPLEX 4M

Part	Cable Diameter [diameter]	Cable Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	2nd Connector	Type	1st Connector	Return Loss	Insertion Loss	Color - Cable	Color - Connectors	Length - Overall [x]	Length - Overall [x]	Fiber Type
FiberSource, Inc PAT-04-DC-B-20-D-9	2 mm	0.08 in	85 °C	-40 °C	SC Duplex	Duplex, Singlemode	SC Duplex	65 dB	0.3 dB	Yellow	Blue	13.1 '	4 m
FiberSource, Inc PAT-04-HD-B-20-D-9	2 mm	0.08 in	85 °C	-40 °C	SC Duplex	Duplex, Singlemode	LC Duplex	65 dB	0.3 dB	Yellow	Blue	13.1 '	4 m
FiberSource, Inc PAT-04-CC-B-20-D-9	2 mm	0.08 in	85 °C	-40 °C	SC Duplex	Duplex, Singlemode	SC Duplex	55 dB	0.3 dB	Yellow	Blue	13.1 '	4 m
FiberSource, Inc PAT-04-NL-F-20-D-A	2 mm	0.08 in	85 °C	-40 °C	SC Duplex	Duplex, Multimode, OM3	LC Duplex				Blue	13.1 '	4 m	50/125
FiberSource, Inc PAT-04-CC-B-20-S-9	2 mm	0.08 in	85 °C	-40 °C	SC/UPC	Simplex, Singlemode	SC/UPC	55 dB, 65 dB	0.2 dB	Yellow		13.1 '	4 m
FiberSource, Inc PAT-04-HH-B-20-D-9	2 mm	0.08 in	85 °C	-40 °C	LC Duplex	Duplex, Singlemode	LC Duplex	55 dB	0.3 dB	Yellow	Blue	13.1 '	4 m
FiberSource, Inc PAT-04-NN-F-20-D-A	2 mm	0.08 in	85 °C	-40 °C	LC/PPC	Duplex, Multimode, OM3					Blue	13.1 '	4 m	50/125
FiberSource, Inc PAT-04-DD-B-20-D-9	2 mm	0.08 in	85 °C	-40 °C	SC Duplex	Duplex, Singlemode	SC Duplex	65 dB	0.3 dB	Yellow	Blue	13.1 '	4 m
FiberSource, Inc PAT-04-HC-B-20-D-9	2 mm	0.08 in	85 °C	-40 °C	SC Duplex	Duplex, Singlemode	LC Duplex	55 dB	0.3 dB	Yellow	Blue	13.1 '	4 m
