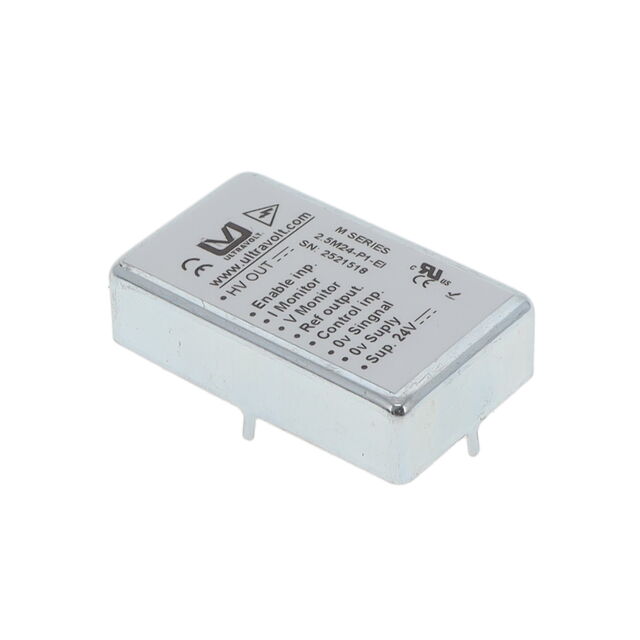

2.5M24-P1-EI

Active

NON-ISOLATED DC/DC CONVERTERS M-SERIES DC TO HVDC CONVERTER, SINGLE OUTPUT (UNIPOLAR), +24V INPUT, +2,500V HVOUT, 1W, THRU-HOLE MOUNT, REGULATED, ENHANCED INTERFACE

Find alt

Alpha

2.5M24-P1-EI

Active

ULTRAVOLT / Advanced Energy

NON-ISOLATED DC/DC CONVERTERS M-SERIES DC TO HVDC CONVERTER, SINGLE OUTPUT (UNIPOLAR), +24V INPUT, +2,500V HVOUT, 1W, THRU-HOLE MOUNT, REGULATED, ENHANCED INTERFACE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

M Series

High Voltage - Isolated Module DC DC Converter 1 Output 0 ~ 2500V 400µA 22V - 26V Input

Technical Specifications

Parameters and characteristics for this part

Specification	2.5M24-P1-EI

Applications	ITE (Commercial)
Approval Agency	cURus, CE, cUL, UL
Current - Output (Max)	400 µA
Features	Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-10 °C
Package / Case	9-SIP Module
Power (Watts)	1 W
Size / Dimension Height	0.49 in
Size / Dimension Length	1.85 in
Size / Dimension Width	1.1 in
Standard Number	60950-1
Type	High Voltage - Isolated Module
Voltage - Input (Max)	26 V
Voltage - Input (Min)	22 V
Voltage - Output 1 (Max)	2500 V
Voltage - Output 1 (Min)	0 V

M Series

...

Part	Applications	Voltage - Input (Min)	Approval Agency	Package Leads	Package Name	Power (Watts)	Features	Current - Output (Max)	Type	Voltage - Input (Max)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Number of Outputs	Mounting Type	Control Features	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Output 1
ULTRAVOLT / Advanced Energy 1.5M24-P1	ITE (Commercial)	22 V	CE cURus	7 Leads	9-SIP Module	1 W	SCP	670 µA	High Voltage - Non-Isolated Module	26 V	0.49 in	1.85 in	1.1 in	1	Through Hole	Active High Enable	65 °C	-10 °C	1500 V
ULTRAVOLT / Advanced Energy 1.5M24-N1	ITE (Commercial)	22 V	CE cURus	7 Leads	9-SIP Module	1 W	SCP	670 µA	High Voltage - Non-Isolated Module	26 V	0.49 in	1.85 in	1.1 in	1	Through Hole	Active Low Enable	65 °C	-10 °C	1500 V
ULTRAVOLT / Advanced Energy 1.5M24-P1-WS	ITE (Commercial)	22 V	CE cUL cURus UL	7 Leads	9-SIP Module	15 W	Adjustable Output	670 µA	High Voltage - Isolated Module	26 V	0.49 in	1.85 in	1.1 in	1	Through Hole		65 °C	-10 °C	1500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

2.5M24-P1-EI | Datasheet
