BU-4150074024
ActiveMueller Electric Co

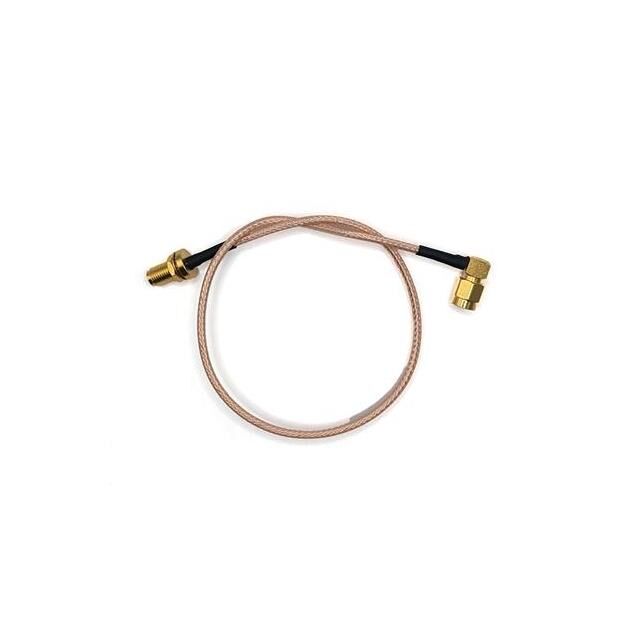

RF / COAXIAL CABLE ASSEMBLY, 6GHZ, 90° SMA PLUG TO SMA BULKHEAD JACK, RG316, 50 OHM, 24 ", 609.6 MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BU-4150074024
ActiveMueller Electric Co
RF / COAXIAL CABLE ASSEMBLY, 6GHZ, 90° SMA PLUG TO SMA BULKHEAD JACK, RG316, 50 OHM, 24 ", 609.6 MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-4150074024 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Frequency - Max [Max] | 6000 MHz |
| Length | 24 " |
| Length | 609.6 mm |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BU-4150074024
Cable Assembly Coaxial SMA to SMA RG-316 24.00" (609.60mm)
