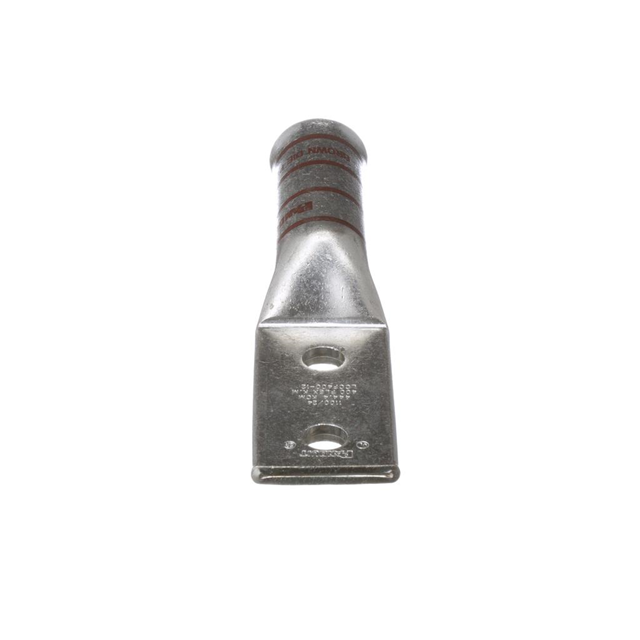

Specification	LCCF400-12-6

Color	Brown
Contact Finish	Electro-Tin
Contact Material	Copper
Diameter - Barrel ID	0.92 in
Diameter - Barrel OD	1.34 in
Diameter - Ring ID	0.53 in
Insulation	Non-Insulated
Length - Overall	6.63 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.5 Stud
Tab Thickness	0.26 in
Terminal Style	Two Stud Holes
Terminal Type	Rectangular Tongue
Termination	Barrel, Crimb
Width - Outer Edges	1.7 in
Wire Gauge (MCM)	400 MCM

LCCF Series

Terminals Copp Comp Lug 2H 250 kcmi

Part	Diameter - Barrel OD	Contact Finish	Diameter - Barrel ID	Contact Material	Diameter - Ring ID	Termination	Tab Thickness	Width - Outer Edges	Stud/Tab Size	Terminal Style	Length - Overall	Terminal Type	Wire Gauge	Mounting Type	Color	Insulation	Stud/Tab Size	Wire Gauge (MCM)
Panduit Corp LCCF4-14B-L	0.46 in	Electro-Tin	0.28 in	Copper	0.27 in	Barrel Crimb	0.09 in	0.55 in	0.25 Stud	Two Stud Holes	2.88 in	Rectangular Tongue	4 AWG	Free Hanging (In-Line)	Gray	Non-Insulated
Panduit Corp LCCF6-14AH-L	0.37 in	Electro-Tin	0.22 in	Copper	0.27 in	Barrel Crimb	0.08 in	0.48 in	0.25 Stud	Two Stud Holes		Rectangular Tongue	6 AWG	45° Angle Free Hanging (In-Line)	Blue	Non-Insulated
Panduit Corp LCCF8-14B-L	0.32 in	Electro-Tin	0.18 in	Copper	0.27 in	Barrel Crimb	0.07 in	0.48 in	0.25 Stud	Two Stud Holes	2.34 in	Rectangular Tongue	8 AWG	Free Hanging (In-Line)	Red	Non-Insulated
Panduit Corp LCCF1-14B-X	0.59 in	Electro-Tin	0.39 in	Copper	0.27 in	Barrel Crimb	0.12 in	0.76 in	0.25 Stud	Two Stud Holes	3.31 in	Rectangular Tongue	1 AWG	Free Hanging (In-Line)	Pink	Non-Insulated
Panduit Corp LCCF6-14AF-L						Barrel Crimb	0.08 in	0.48 in	0.25 Stud	Two Stud Holes		Rectangular Tongue	6 AWG	Free Hanging (In-Line) Right Angle	Blue	Non-Insulated
Panduit Corp LCCF4/0-38-X	0.91 in	Electro-Tin	0.63 in	Copper	0.41 in	Barrel Crimb	0.14 in	1.17 in	0.375 in	Two Stud Holes	4.84 in	Rectangular Tongue	4/0 AWG	Free Hanging (In-Line)	Yellow	Non-Insulated	3 Stud 8 Stud
Panduit Corp LCCF1/0-38D-X	0.67 in	Electro-Tin	0.45 in	Copper	0.41 in	Barrel Crimb	0.13 in	0.85 in	0.375 in	Two Stud Holes	3.82 in	Rectangular Tongue	1/0 AWG	Free Hanging (In-Line)	Black	Non-Insulated	3 Stud 8 Stud
Panduit Corp LCCF500-38E-6
Panduit Corp LCCF4/0-12F-X	0.91 in	Electro-Tin	0.63 in	Copper	0.53 in	Barrel Crimb	0.14 in	1.17 in	0.5 Stud	Two Stud Holes		Rectangular Tongue	4/0 AWG	Free Hanging (In-Line) Right Angle	Yellow	Non-Insulated
Panduit Corp LCCF750-12H-3	1.8 in	Electro-Tin	1.17 in	Copper	0.53 in	Barrel Crimb	0.32 in	2.17 in	0.5 Stud	Two Stud Holes		Rectangular Tongue		45° Angle Free Hanging (In-Line)	Orange	Non-Insulated		750 MCM
