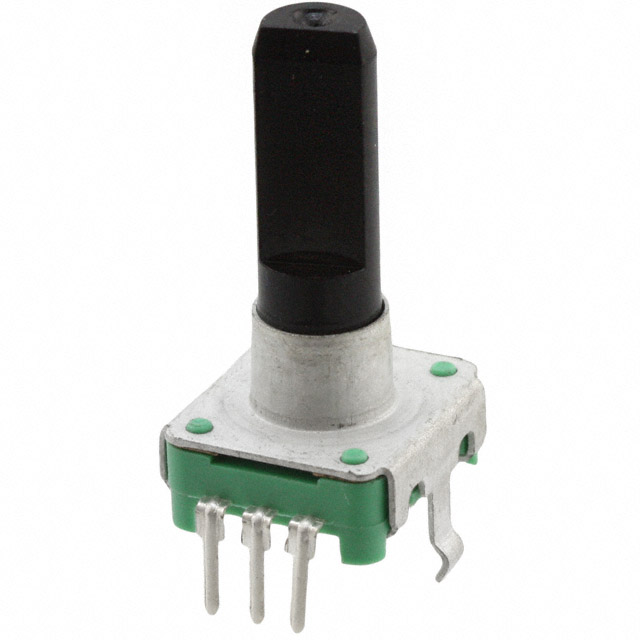

EN12-HN22AF25
ActiveTT Electronics/BI
ROTARY ENCODER MECHANICAL 24PPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN12-HN22AF25
ActiveTT Electronics/BI
ROTARY ENCODER MECHANICAL 24PPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EN12-HN22AF25 |
|---|---|
| Actuator Type | Flatted End |
| Actuator Type [diameter] | 6 mm |
| Built in Switch | False |
| Detent | True |
| Encoder Type | Mechanical |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 24 per Revolution |
| Rotational Life (Cycles Min) [Min] | 30K |
| Termination Style | PC Pin |
EN12 Series
| Part | Pulses per Revolution | Actuator Type [diameter] | Actuator Type | Termination Style | Encoder Type | Orientation | Rotational Life (Cycles Min) [Min] | Built in Switch | Output Type | Detent |
|---|---|---|---|---|---|---|---|---|---|---|
TT Electronics/BI | 24 per Revolution | 6 mm | Flatted End | PC Pin | Mechanical | Vertical | 30K | Quadrature (Incremental) | ||
TT Electronics/BI | 24 per Revolution | 6 mm | Flatted End | PC Pin | Mechanical | Vertical | 30K | Quadrature (Incremental) | ||
TT Electronics/BI | 12 pulses per revolution | 6 mm | Flatted End | PC Pin | Mechanical | Vertical | 30K | Quadrature (Incremental) | ||
TT Electronics/BI | 24 per Revolution | 6 mm | Flatted End | PC Pin | Mechanical | Right Angle | 30K | Quadrature (Incremental) | ||
TT Electronics/BI | 12 pulses per revolution | 6 mm | Flatted End | PC Pin | Mechanical | Vertical | 30K | Quadrature (Incremental) | ||
TT Electronics/BI | 24 per Revolution | 6 mm | Flatted End | PC Pin | Mechanical | Right Angle | 30K | Quadrature (Incremental) | ||
TT Electronics/BI | 24 per Revolution | 6 mm | Flatted End | PC Pin | Mechanical | Vertical | 30K | Quadrature (Incremental) | ||
TT Electronics/BI | 24 per Revolution | 6 mm | Flatted End | PC Pin | Mechanical | Right Angle | 30K | Quadrature (Incremental) | ||
TT Electronics/BI | 24 per Revolution | 6 mm | Flatted End | PC Pin | Mechanical | Right Angle | 30K | Quadrature (Incremental) | ||
TT Electronics/BI | 24 per Revolution | 6 mm | Flatted End | PC Pin | Mechanical | Vertical | 30K | Quadrature (Incremental) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.72 | |
| 5 | $ 1.63 | |||
| 10 | $ 1.52 | |||
| 25 | $ 1.40 | |||
| 40 | $ 1.30 | |||
| 80 | $ 1.18 | |||
| 230 | $ 1.11 | |||
| 440 | $ 1.05 | |||
| 945 | $ 0.99 | |||
Description
General part information
EN12 Series
Rotary Encoder Mechanical 24 Quadrature (Incremental) Vertical
