796645-2

Active

TE Connectivity AMP Connectors

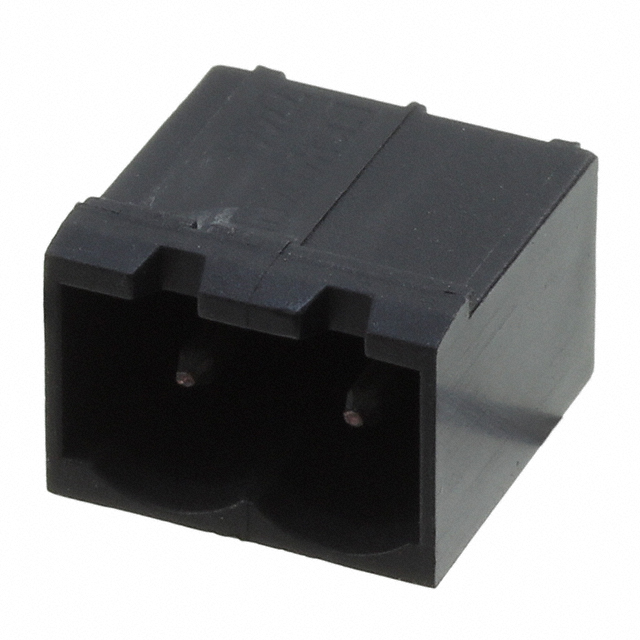

TERM BLOCK HDR 2POS 90DEG 5MM

Deep-Dive with AI

Search across all available documentation for this part.

796645-2

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 2POS 90DEG 5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.62
		10	$ 0.58
		25	$ 0.58
		50	$ 0.56
		100	$ 0.48
		300	$ 0.44
		600	$ 0.41
		1200	$ 0.36
		5100	$ 0.32

Description

General part information

796645 Series

2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796645-2	796645 Series

Color	Black	Black
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 mm
Contact Tail Length	0.138 in	0.138 in
Header Orientation	90°, Right Angle	90°, Right Angle
Insulation Height	8.36 mm	8.36 mm
Insulation Height	0.329 in	0.329 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	2	2 - 11
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	2	2 - 11
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V	300 V

796645 Series

TERM BLOCK HDR 8POS 90DEG 5MM

Part	Termination Style	Insulation Height	Insulation Height	Header Orientation	Type	Positions Per Level	Number of Levels	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Voltage - UL	Mounting Type	Contact Material	Contact Mating Finish	Number of Positions	Color
TE Connectivity AMP Connectors 796645-8	Solder	8.36 mm	0.329 in	90°, Right Angle	Header, Male Pins, Shrouded (4 Side)	8	1	5 mm	0.197 in	-40 °C	110 °C	UL94 V-0	3.5 mm	0.138 in	300 V	Through Hole	Copper Alloy	Tin	8	Black
TE Connectivity AMP Connectors 796645-2	Solder	8.36 mm	0.329 in	90°, Right Angle	Header, Male Pins, Shrouded (4 Side)	2	1	5 mm	0.197 in	-40 °C	110 °C	UL94 V-0	3.5 mm	0.138 in	300 V	Through Hole	Copper Alloy	Tin	2	Black
TE Connectivity AMP Connectors 796645-5	Solder	8.36 mm	0.329 in	90°, Right Angle	Header, Male Pins, Shrouded (4 Side)	5	1	5 mm	0.197 in	-40 °C	110 °C	UL94 V-0	3.5 mm	0.138 in	300 V	Through Hole	Copper Alloy	Tin		Black
TE Connectivity AMP Connectors 796645-9	Solder	8.36 mm	0.329 in	90°, Right Angle	Header, Male Pins, Shrouded (4 Side)	9	1	5 mm	0.197 in	-40 °C	110 °C	UL94 V-0	3.5 mm	0.138 in	300 V	Through Hole	Copper Alloy	Tin	9	Black
TE Connectivity AMP Connectors 796645-7	Solder	8.36 mm	0.329 in	90°, Right Angle	Header, Male Pins, Shrouded (4 Side)	7	1	5 mm	0.197 in	-40 °C	110 °C	UL94 V-0	3.5 mm	0.138 in	300 V	Through Hole	Copper Alloy	Tin	7	Black
TE Connectivity AMP Connectors 1-796645-1	Solder	8.36 mm	0.329 in	90°, Right Angle	Header, Male Pins, Shrouded (4 Side)	11	1	5 mm	0.197 in	-40 °C	110 °C	UL94 V-0	3.5 mm	0.138 in	300 V	Through Hole	Copper Alloy	Tin	11	Black
