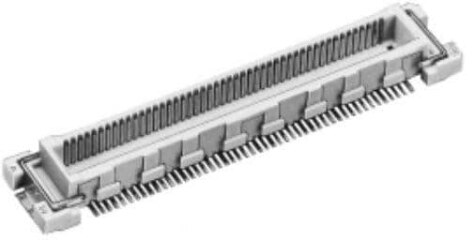

Specification	FX10A-144P-SV(85)

Connector Type	Outer Shroud Contacts, Header
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Board Guide, Solder Retention
Height Above Board	0.138 in
Mated Stacking Height	4 mm
Mounting Type	Surface Mount
Number of Positions	144
Number of Rows	2
Pitch	0.02 in

FX10A Series

...

Part	Number of Rows	Mounting Type	Pitch	Number of Positions	Mated Stacking Height	Height Above Board	Connector Type	Contact Finish	Contact Finish Thickness	Features	Mated Stacking Height Options
Hirose Electric Co Ltd FX10A-96P-SV1(71)	2	Surface Mount	0.02 in	96	5 mm	0.177 in	Header Outer Shroud Contacts	Gold	4 µin	Board Guide Solder Retention
Hirose Electric Co Ltd FX10A-168S-SV(84)	2	Surface Mount	0.02 in	168		0.126 in	Center Strip Contacts Receptacle	Gold		Board Guide Solder Retention	4mm 5mm
Hirose Electric Co Ltd FX10A-100P/10-SV1(91)	2	Surface Mount	0.02 in	100	5 mm	0.177 in	Header Outer Shroud Contacts	Gold	4 µin	Board Guide Ground Plate Solder Retention
Hirose Electric Co Ltd FX10A-100S/10-SV(71)	2	Surface Mount	0.02 in	100		0.126 in	Center Strip Contacts Receptacle	Gold	4 µin	Board Guide Ground Plate Solder Retention	4mm 5mm
Hirose Electric Co Ltd FX10A-168S-SV(85)	2	Surface Mount	0.02 in	168		0.126 in	Center Strip Contacts Receptacle	Gold	30 µin	Board Guide Solder Retention	4mm 5mm 6mm 7mm 8mm
Hirose Electric Co Ltd FX10A-140S/14-SV(71)	2	Surface Mount	0.02 in	140		0.126 in	Center Strip Contacts Receptacle	Gold	4 µin	Board Guide Ground Plate Solder Retention	4mm 5mm
Hirose Electric Co Ltd FX10A-100P/10-SV	2	Surface Mount	0.02 in	100	4 mm	0.138 in	Header Outer Shroud Contacts	Gold	4 µin	Board Guide Ground Plate Solder Retention
Hirose Electric Co Ltd FX10A-168P-SV1(83)	2	Surface Mount	0.02 in	168	5 mm	0.177 in	Header Outer Shroud Contacts	Gold	30 µin	Board Guide Solder Retention
Hirose Electric Co Ltd FX10A-140P/14-SV1(71)	2	Surface Mount	0.02 in	140	5 mm	0.177 in	Header Outer Shroud Contacts	Gold	4 µin	Board Guide Ground Plate Solder Retention
Hirose Electric Co Ltd FX10A-80S/8-SV(21)	2	Surface Mount	0.02 in	80		0.126 in	Center Strip Contacts Receptacle	Gold	4 µin	Board Guide Ground Plate Solder Retention	4mm 5mm
