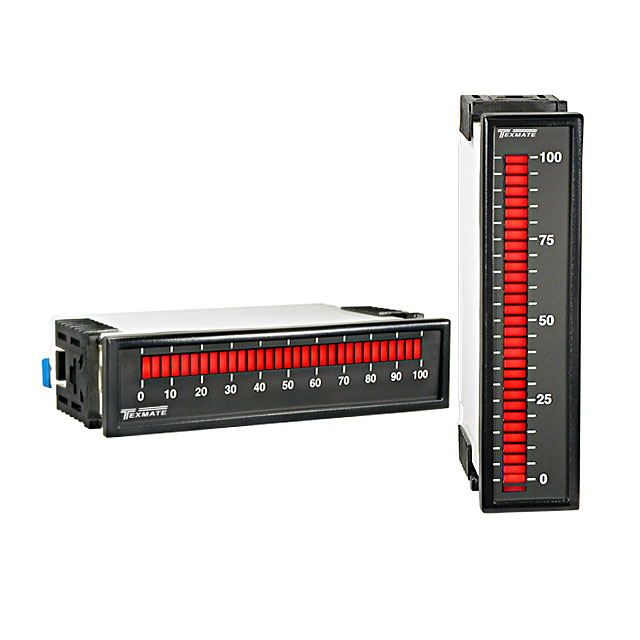

BX-B31-4-20MA

Active

Texmate

31 SEG LED BARGRAPH. MEASURE 4-2

Search across all available documentation for this part.

Active

Texmate

31 SEG LED BARGRAPH. MEASURE 4-2

Technical Specifications

Parameters and characteristics commom to parts in this series

31 SEG LED BARGRAPH. MEASURE 4-2

Part	Type	Termination Style	Display Type	Measuring Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Display Characters - Height [z]	Display Characters - Height [z]	Voltage - Supply [Min]	Voltage - Supply [Max]	Measuring Range [Min]	Measuring Range [Max]
Texmate BX-B31-4-20MA	Process Meter	Screw Terminal	LED - Red Bar Graph	Process	91.95 mm	21.84 mm	0.15 in	3.81 mm	85 VAC, 95 VDC	265 VAC, 300 VDC
Texmate BX-B31-PROCESSV	Process Meter	Screw Terminal	LED - Red Bar Graph	Process	91.95 mm	21.84 mm	0.15 in	3.81 mm	85 VAC, 95 VDC	265 VAC, 300 VDC	0 V, 4 mA	10 V, 20 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 349.00

General part information

Process Meter LED - Red Bar Graph Display Panel Mount
