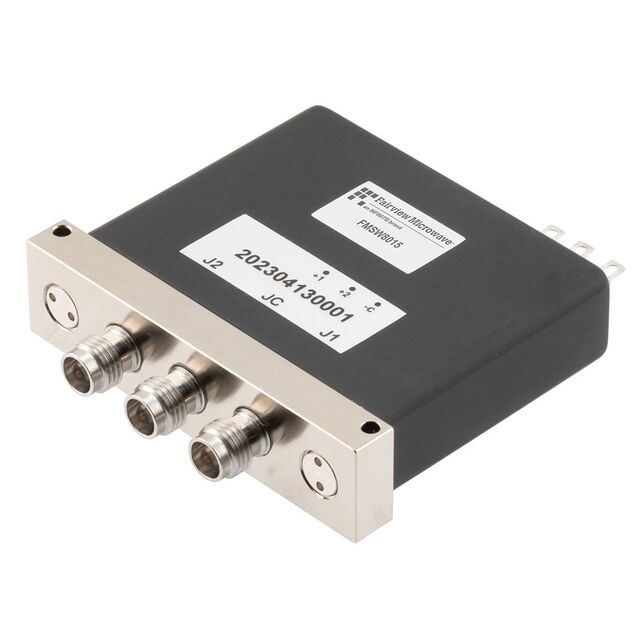

FMSW8015
ActiveFairview Microwave
EM RELAY SWITCH 53 GHZ 28 V 2.4M
FMSW8015
ActiveFairview Microwave
EM RELAY SWITCH 53 GHZ 28 V 2.4M
Description
General part information
FMSW8015
RF Switch IC General Purpose SPDT 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | FMSW8015 |
|---|---|
| Circuit | SPDT |
| Frequency Range (Low) | DC |
| Frequency Range (Max) | 53 GHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.8 dB |
| Isolation | 80 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -25 °C |
| RF Type | General Purpose |
| Test Frequency | 53 GHz |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 26 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
