1-965641-2

Active

TE Connectivity Raychem Cable Protection

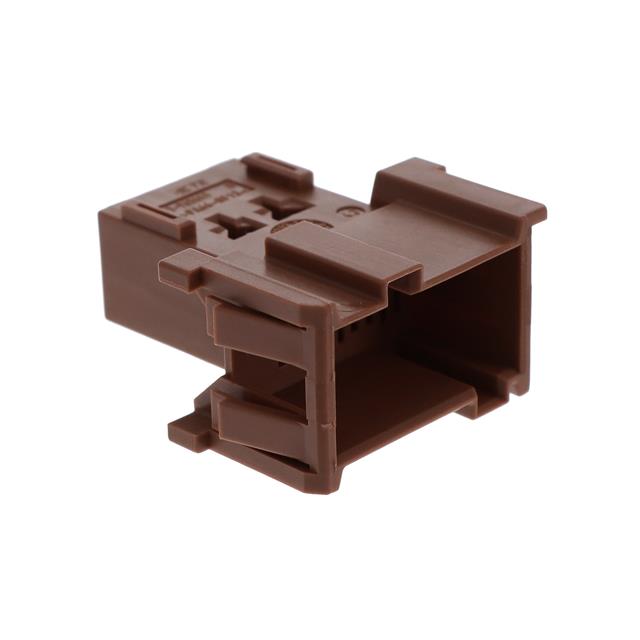

AUTOMOTIVE HOUSING, PLUG, 6POS, BROWN ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN Technical Data Sheet EN +1

1-965641-2

Active

TE Connectivity Raychem Cable Protection

AUTOMOTIVE HOUSING, PLUG, 6POS, BROWN ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsProduct Change Notice EN Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-965641-2

Color	Brown
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Tab
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Row Spacing	0.217 in
Row Spacing	5.5 mm

AMP MCP 2.8 Series

Part	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Contact Finish	Contact Termination	Color	Pitch [x]	Pitch [x]	Mounting Type	Contact Type	Insulation Material	Row Spacing	Row Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Connector Type	Number of Positions	Row Spacing [x]	Note	Fastening Type	Features	Wire Gauge
TE Connectivity Raychem Cable Protection 1-2141859-3	20 AWG	24 AWG	3 µm	118.1 µin	Socket	Silver	Crimp
TE Connectivity Raychem Cable Protection 1-1718562-1
TE Connectivity Raychem Cable Protection 1-2282364-3
TE Connectivity Raychem Cable Protection 1-965641-2							Crimp	Brown	5 mm	0.197 in	Free Hanging (In-Line)	Tab	Polyamide (PA66) Nylon 6/6 Glass Filled	0.217 in	5.5 mm	-40 °C	120 °C	2	Plug	6
TE Connectivity Raychem Cable Protection 1-2141859-2	20 AWG	24 AWG	2 µm	78.7 µin	Socket	Gold	Crimp
TE Connectivity Raychem Cable Protection 1745078-2							Crimp	Gray	5.5 mm	0.217 in	Free Hanging (In-Line)	Female Socket	Polybutylene Terephthalate (PBT) Glass Filled		5.51 mm	-40 °C	100 °C	2	Receptacle	6	0.217 in	Contacts Not Included	Latch Holder	Connector Position Assurance (CPA) Sealed
TE Connectivity Raychem Cable Protection 2208856-1
TE Connectivity Raychem Cable Protection 1-1355880-1			1 Ám	39.4 Áin	Socket	Tin	Crimp																		4 AWG
TE Connectivity Raychem Cable Protection 1-1719506-3
TE Connectivity Raychem Cable Protection 8-968971-2							Crimp	Gray	5 mm	0.197 in	Free Hanging (In-Line)	Female Socket	Polybutylene Terephthalate (PBT) Glass Filled	0.217 in	5.5 mm	-40 °C	120 °C	3	Receptacle	9		Contacts Not Included	Locking Ramp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.39
		10	$ 1.21
		25	$ 1.16
		50	$ 1.13
		100	$ 1.08
		250	$ 0.98
		500	$ 0.91
Newark	Each	1	$ 1.72
		10	$ 1.21
		25	$ 1.15
		50	$ 1.10
		100	$ 1.05
		500	$ 1.01
		1000	$ 0.98
		2500	$ 0.94

Description

General part information

AMP MCP 2.8 Series

6 Rectangular Connectors - Housings Plug Brown 0.197" (5.00mm)

Documents

Technical documentation and resources

Product Change Notice EN

Datasheet

Technical Data Sheet EN

Datasheet
