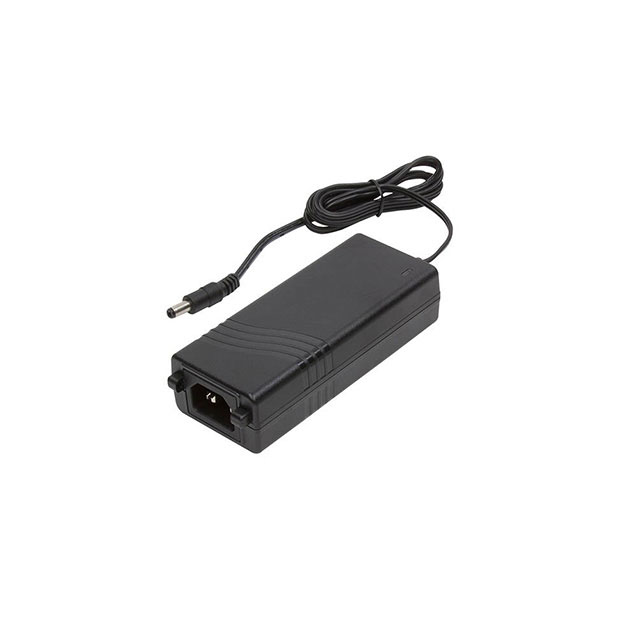

AKM45US24

Active

XP POWER

AC/DC DESKTOP ADAPTER 24V 48W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AKM45US24

Active

XP POWER

AC/DC DESKTOP ADAPTER 24V 48W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AKM45US24

Applications	ITE (Commercial), Medical
Approval Agency	CE, CSA, CB, TUV, UL
Cord Length	1 m
Cord Length	39.4 "
Current - Output (Max) [Max]	2 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	48 W
Region Utilized	International
Size / Dimension [x]	4.81 "
Size / Dimension [x]	122.2 mm
Size / Dimension [y]	2.02 "
Size / Dimension [y]	51.3 mm
Size / Dimension [z]	31.5 mm
Size / Dimension [z]	1.24 "
Standard Number	60601-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

AKM45 Series

Part	Output Connector	Output Connector [diameter]	Output Connector [x]	Input Type	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Input Connector	Voltage - Output	Region Utilized	Form	Operating Temperature [Max]	Standard Number	Cord Length	Cord Length	Polarization	Power (Watts)	Applications
XP POWER AKM45US12C2	Barrel Plug	2.5 mm 5.5 mm	11 mm	Cord	CB CE CSA TUV UL	90 VAC	264 VAC	75 mW	CoC Tier 2 Level VI	2.02 "	31.5 mm	4.81 "	51.3 mm	122.2 mm	1.24 "	4 A	IEC 320-C8 Polarized	12 V	International	Desktop (Class II)	60 °C	60601-1 62368-1	1 m	39.4 "	Positive Center	48 W	ITE (Commercial) Medical
XP POWER AKM45US18	Barrel Plug	2.5 mm 5.5 mm	11 mm	Cord	CB CE CSA TUV UL	90 VAC	264 VAC	75 mW	CoC Tier 2 Level VI	2.02 "	31.5 mm	4.81 "	51.3 mm	122.2 mm	1.24 "	2.66 A	IEC 320-C14	18 V	International	Desktop (Class I)	60 °C	60601-1 62368-1	1 m	39.4 "	Positive Center	48 W	ITE (Commercial) Medical
XP POWER AKM45US48C2	Barrel Plug	2.5 mm 5.5 mm	11 mm	Cord	CB CE CSA TUV UL	90 VAC	264 VAC	75 mW	CoC Tier 2 Level VI	2.02 "	31.5 mm	4.81 "	51.3 mm	122.2 mm	1.24 "	1 A	IEC 320-C8 Polarized	48 V	International	Desktop (Class II)	60 °C	60601-1 62368-1	1 m	39.4 "	Positive Center	48 W	ITE (Commercial) Medical
XP POWER AKM45US24C2	Barrel Plug	2.5 mm 5.5 mm	11 mm	Cord	CB CE CSA TUV UL	90 VAC	264 VAC	75 mW	CoC Tier 2 Level VI	2.02 "	31.5 mm	4.81 "	51.3 mm	122.2 mm	1.24 "	2 A	IEC 320-C8 Polarized	24 V	International	Desktop (Class II)	60 °C	60601-1 62368-1	1 m	39.4 "	Positive Center	48 W	ITE (Commercial) Medical
XP POWER AKM45US12	Barrel Plug	2.5 mm 5.5 mm	11 mm	Cord	CB CE CSA TUV UL	90 VAC	264 VAC	75 mW	CoC Tier 2 Level VI	2.02 "	31.5 mm	4.81 "	51.3 mm	122.2 mm	1.24 "	4 A	IEC 320-C14	12 V	International	Desktop (Class I)	60 °C	60601-1 62368-1	1 m	39.4 "	Positive Center	48 W	ITE (Commercial) Medical
XP POWER AKM45US24	Barrel Plug	2.5 mm 5.5 mm	11 mm	Cord	CB CE CSA TUV UL	90 VAC	264 VAC	75 mW	CoC Tier 2 Level VI	2.02 "	31.5 mm	4.81 "	51.3 mm	122.2 mm	1.24 "	2 A	IEC 320-C14	24 V	International	Desktop (Class I)	60 °C	60601-1 62368-1	1 m	39.4 "	Positive Center	48 W	ITE (Commercial) Medical
XP POWER AKM45US15	Barrel Plug	2.5 mm 5.5 mm	11 mm	Cord	CB CE CSA TUV UL	90 VAC	264 VAC	75 mW	CoC Tier 2 Level VI	2.02 "	31.5 mm	4.81 "	51.3 mm	122.2 mm	1.24 "	3.2 A	IEC 320-C14	15 VDC	International	Desktop (Class I)	60 °C	60601-1 62368-1	1 m	39.4 "	Positive Center	48 W	ITE (Commercial) Medical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.17
		5	$ 29.26
		10	$ 28.36
		25	$ 27.15
		100	$ 25.34

Description

General part information

AKM45 Series

24V 48 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
