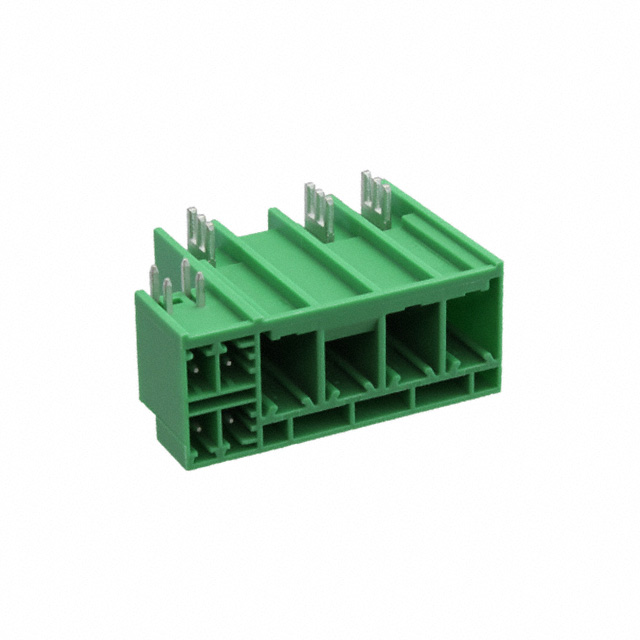

Specification	1717119

Color	Green
Contact Mating Finish	Tin
Current - IEC	41 A
Current - UL	35 A
Header Orientation	Right Angle
Header Orientation Angle	90 °
Insulation Height	0.646 in
Mounting Type	Through Hole
Number of Levels	Hybrid
Number of Positions	7
Pitch	0.3 in
Positions Per Level (Power)	3
Positions Per Level (Signal)	4
Positions Per Level (Total)	7
Termination Style	Solder
Type	Male Blades and Pins, Header, Shrouded (4 Side)
Voltage - IEC	630 V
Voltage - UL	300 V
