1-84981-3

Active

TE Connectivity AMP Connectors

CONN FFC FPC TOP 13POS 1MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-84981-3

Active

TE Connectivity AMP Connectors

CONN FFC FPC TOP 13POS 1MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.75
		10	$ 0.73
		25	$ 0.73
		50	$ 0.70
		100	$ 0.59
		250	$ 0.55
		500	$ 0.52
	Digi-Reel®	1	$ 0.75
		10	$ 0.73
		25	$ 0.73
		50	$ 0.70
		100	$ 0.59
		250	$ 0.55
		500	$ 0.52
	Tape & Reel (TR)	1500	$ 0.27

Description

General part information

84981 Series

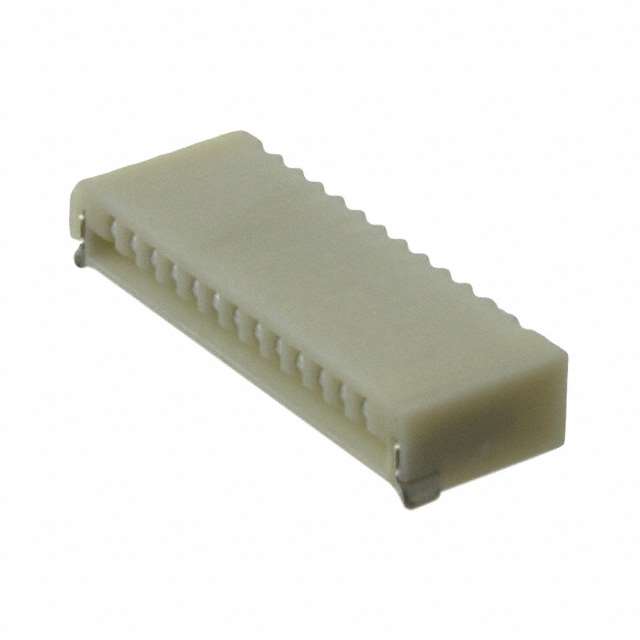

13 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle

Documents

Technical documentation and resources

Datasheet

Specification	1-84981-3	84981 Series

Cable End Type	Straight	Straight
Connector/Contact Type	Contacts, Top	Contacts, Top
Contact Finish	Tin	Tin
Contact Material	Phosphor Bronze	Phosphor Bronze
Features	Solder Retention	Solder Retention
FFC, FCB Thickness	0.3 mm	0.3 mm
Flat Flex Type	FPC, FFC	FPC, FFC
Height Above Board	0.118 in	0.118 in
Height Above Board	3 mm	3 mm
Housing Color	Beige	Beige
Housing Material	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	13	4 - 30
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination	Solder	Solder
Voltage Rating	125 VDC	125 VDC

Part	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Termination	Housing Color	Pitch [x]	Pitch [x]	Number of Positions	Connector/Contact Type	Features	Flat Flex Type	Cable End Type	Contact Finish	Height Above Board	Height Above Board	Voltage Rating	Mounting Type	FFC, FCB Thickness
TE Connectivity AMP Connectors 3-84981-0	Phosphor Bronze	85 °C	-20 C	Polyamide (PA), Nylon, Glass Filled	Solder	Beige	0.039 in	1 mm	30	Contacts, Top	Solder Retention	FFC, FPC	Straight	Tin	0.118 in	3 mm	125 VDC	Surface Mount, Right Angle	0.3 mm
TE Connectivity AMP Connectors 84981-5	Phosphor Bronze	85 °C	-20 C	Polyamide (PA), Nylon, Glass Filled	Solder	Beige	0.039 in	1 mm		Contacts, Top	Solder Retention	FFC, FPC	Straight	Tin	0.118 in	3 mm	125 VDC	Surface Mount, Right Angle	0.3 mm
TE Connectivity AMP Connectors 1-84981-0	Phosphor Bronze	85 °C	-20 C	Polyamide (PA), Nylon, Glass Filled	Solder	Beige	0.039 in	1 mm	10	Contacts, Top	Solder Retention	FFC, FPC	Straight	Tin	0.118 in	3 mm	125 VDC	Surface Mount, Right Angle	0.3 mm
TE Connectivity AMP Connectors 1-84981-4	Phosphor Bronze	85 °C	-20 C	Polyamide (PA), Nylon, Glass Filled	Solder	Beige	0.039 in	1 mm	14	Contacts, Top	Solder Retention	FFC, FPC	Straight	Tin	0.118 in	3 mm	125 VDC	Surface Mount, Right Angle	0.3 mm
TE Connectivity AMP Connectors 84981-8	Phosphor Bronze	85 °C	-20 C	Polyamide (PA), Nylon, Glass Filled	Solder	Beige	0.039 in	1 mm	8	Contacts, Top	Solder Retention	FFC, FPC	Straight	Tin	0.118 in	3 mm	125 VDC	Surface Mount, Right Angle	0.3 mm
TE Connectivity AMP Connectors 1-84981-3	Phosphor Bronze	85 °C	-20 C	Polyamide (PA), Nylon, Glass Filled	Solder	Beige	0.039 in	1 mm	13	Contacts, Top	Solder Retention	FFC, FPC	Straight	Tin	0.118 in	3 mm	125 VDC	Surface Mount, Right Angle	0.3 mm
