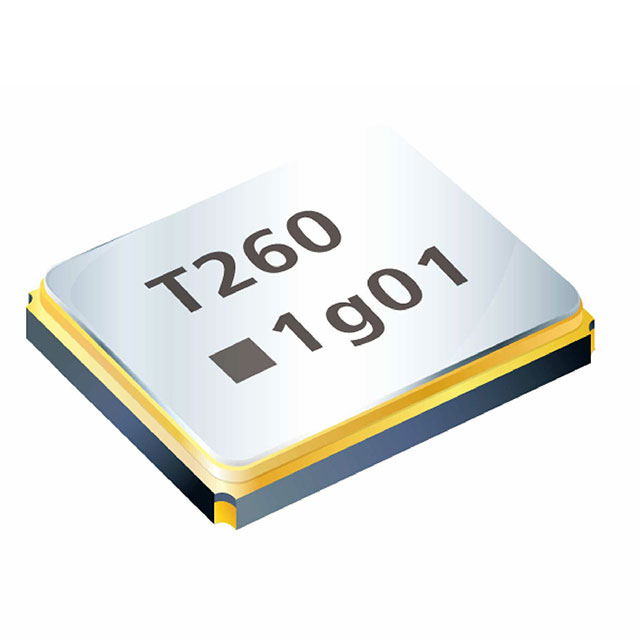

7M-32.000MBBK-T
ActiveTXC CORPORATION
CRYSTAL 32.0000MHZ 20PF SMD
7M-32.000MBBK-T
ActiveTXC CORPORATION
CRYSTAL 32.0000MHZ 20PF SMD
Description
General part information
7M-32.000MBBK-T
32 MHz ±50ppm Crystal 20pF 60 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | 7M-32.000MBBK-T |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohm |
| Frequency | 32 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 50 ppm |
| Height - Seated (Max) | 0.031 in |
| Load Capacitance | 20 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 3.2 mm |
| Package Name | 4-SMD |
| Package Width | 2.5 mm |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | MHz Crystal |
