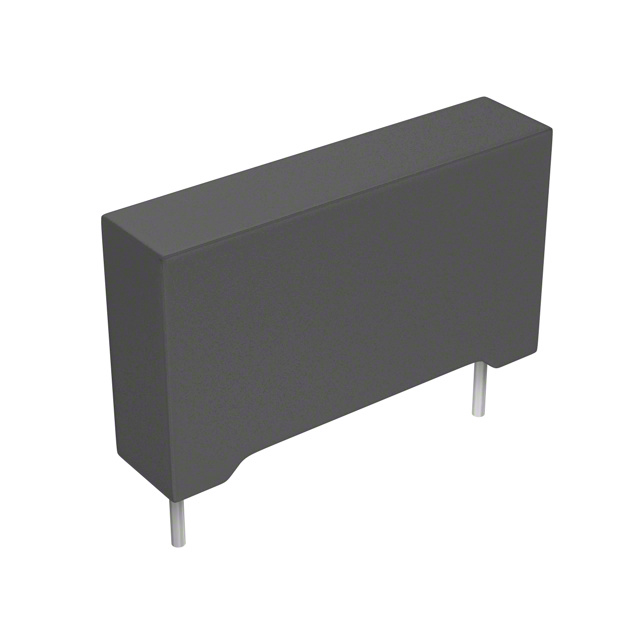

160683J630L-F
ActiveCornell Dubilier Knowles
CAP FILM 0.068UF 5% 630VDC RAD
160683J630L-F
ActiveCornell Dubilier Knowles
CAP FILM 0.068UF 5% 630VDC RAD
Description
General part information
160683J630L-F
0.068 µF Film Capacitor 220V 630V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 160683J630L-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.068 µF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.591 in |
| Lead Spacing | 0.886 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.043 in |
| Size / Dimension Width | 0.236 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 220 V |
| Voltage Rating - DC | 630 V |
