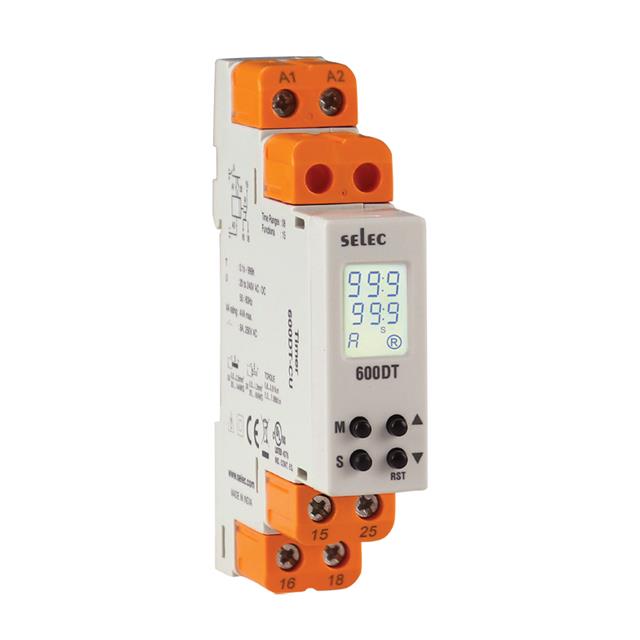

600DT-V2-CU

Active

Selec Controls USA Inc.

RELAY TIME DELAY 999HR 8A 250V

Search across all available documentation for this part.

Active

Selec Controls USA Inc.

RELAY TIME DELAY 999HR 8A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	600DT-V2-CU

Contact Rating @ Voltage	250 VAC, 8 A
Delay Time [Max]	999 Hrs
Delay Time [Min]	0 s
Function	Programmable (Multi-Function)
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Up/Down Digit Keys
Timing Initiate Method	Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	20 VAC

RELAY TIME DELAY 999HR 8A 250V

Part	Contact Rating @ Voltage	Voltage - Supply [Max]	Voltage - Supply [Min]	Delay Time [Min]	Delay Time [Max]	Relay Type	Timing Adjustment Method	Timing Initiate Method	Termination Style	Mounting Type	Function
Selec Controls USA Inc. 600DT-V2-CU	8 A, 250 VAC	240 VAC	20 VAC	0 s	999 Hrs	Mechanical Relay	Up/Down Digit Keys	Input Voltage	Screw Terminal	DIN Rail	Programmable (Multi-Function)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 0 Sec ~ 999 Hrs Delay 8A @ 250VAC DIN Rail
