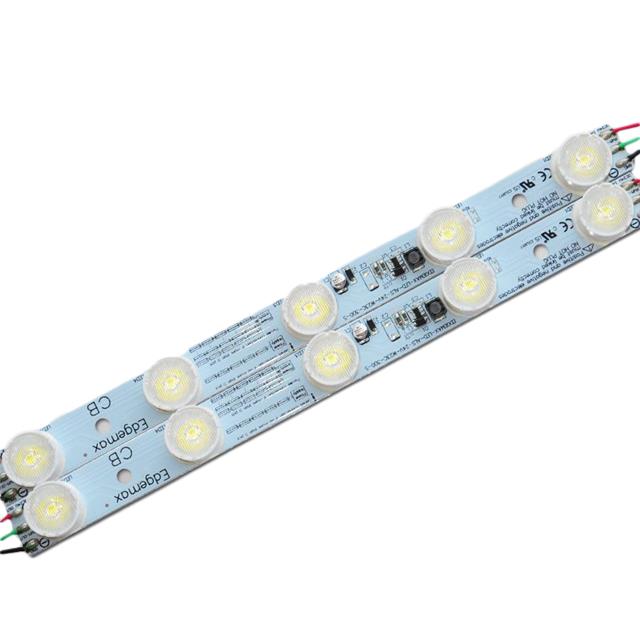

ALS-24V-1W23-3535-360-5

Active

Edgelight LLC

LED MOD WH LNR LGT STRIP 7000K

Search across all available documentation for this part.

Active

Edgelight LLC

LED MOD WH LNR LGT STRIP 7000K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module - White, Cool Linear Light Strip

Technical documentation and resources

Specification	ALS-24V-1W23-3535-360-5	ALS-24V Series

CCT (K)	-	6500 K
CCT (K) [Max]	7000 K	6500 - 7000 K
CCT (K) [Min]	6000 K	6000 K
Color	Cool, White	White, Cool
Configuration	Linear Light Strip	Linear Light Strip
Current - Max [Max]	612 mA	500 - 612 mA
Features	Dimming	Dimming
Height [z]	14 mm	14 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	110 lm/W	110 - 130 lm/W
Luminous Flux @ Current/Temperature	1622 lm	950 - 1622 lm
Size / Dimension [x]	360 mm	300 - 470 mm
Size / Dimension [y]	23 mm	23 mm
Type	LED Module	LED Engine, LED Module
Viewing Angle	-	39 °
Viewing Angle	-	13 °
Voltage - Forward (Vf) (Typ)	24 V	24 V

Part	Viewing Angle [y]	Viewing Angle [x]	Lens Type	Type	Size / Dimension [x]	Color	CCT (K)	Configuration	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	CCT (K) [Min]	CCT (K) [Max]	Current - Max [Max]	Features	Lumens/Watt @ Current - Test	Height [z]	Size / Dimension [y]
Edgelight LLC ALS-24V-W23C-470-9	39 °	13 °	Flat	LED Engine	470 mm	White	6500 K	Linear Light Strip
Edgelight LLC ALS-24V-1W23-3535-470-9			Flat	LED Module	470 mm	Cool, White		Linear Light Strip	950 lm	24 V	6000 K	6500 K	500 mA	Dimming	130 lm/W	14 mm	23 mm
Edgelight LLC ALS-24V-W23C-300-5	39 °	13 °		LED Engine	300 mm	White	6500 K	Linear Light Strip
Edgelight LLC ALS-24V-1W23-3535-360-5			Flat	LED Module	360 mm	Cool, White		Linear Light Strip	1622 lm	24 V	6000 K	7000 K	612 mA	Dimming	110 lm/W	14 mm	23 mm
