A1545.N0500.12

Active

American Electrical Inc.

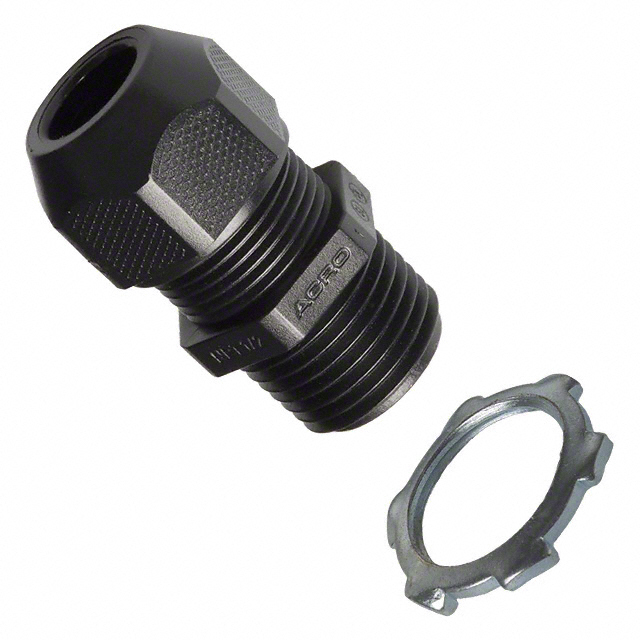

CABLE GLAND 5.5-12MM 1/2" NPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKnockout Hole Sizes Datasheet

A1545.N0500.12

Active

American Electrical Inc.

CABLE GLAND 5.5-12MM 1/2" NPT

Deep-Dive with AI

DocumentsKnockout Hole Sizes Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 2.68
		10	$ 2.43
		25	$ 2.30
		50	$ 2.25
		100	$ 2.14
		250	$ 1.87
		500	$ 1.82
		1000	$ 1.55
		2500	$ 1.45

Description

General part information

1545 Series

Cable Gland Polyamide (PA), Nylon 1/2" NPT Black

Documents

Technical documentation and resources

Knockout Hole Sizes

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A1545.N0500.12	1545 Series

Color	Black	Black
Includes	Sealing Ring	Sealing Ring
Ingress Protection	IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant	IP68 - Dust Tight, Waterproof, IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Outside Cable Diameter (Max)	-	14 - 44 mm
Outside Cable Diameter (Max)	-	0.551 - 1.732 "
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in	0.276 - 1.496 "
Outside Cable Diameter (Max) [Max] [diameter]	12 mm	7 - 38 mm
Outside Cable Diameter (Min)	-	0.157 - 1.102 in
Outside Cable Diameter (Min)	-	4 - 28 mm
Outside Cable Diameter (Min) [Min] [diameter]	5.5 mm	2 - 32 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.217 in	0.079 - 1.26 in
Panel Hole Size	-	15.2 - 59.3 mm
Panel Hole Size	-	0.598 - 2.338 in
Panel Hole Size	-	1.85 in
Panel Hole Size	-	47 mm
Thread Length	0.591 in	0.315 - 0.591 in
Thread Length	15 mm	8 - 15 mm
Thread Size	1/2" NPT	PG21, PG11, 1/2" NPT, 1" NPT, PG9, 3/4 NPT, PG36, PG48, PG42, 3/8" NPT
Type	Cable Gland	Cable Gland

1545 Series

CABLE GLAND 6.5-14MM PG21

Part	Color	Panel Hole Size	Panel Hole Size	Material	Type	Thread Size	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Ingress Protection	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Panel Hole Size [diameter]	Panel Hole Size [diameter]
American Electrical Inc. A1545.21.14	Black	28.3 mm	1.114 in	Polyamide (PA), Nylon	Cable Gland	PG21	Sealing Ring	100 °C	-30 ░C	6.5 mm	0.256 in	0.433 in	11 mm	IP68 - Dust Tight, Waterproof	14 mm	0.551 "
American Electrical Inc. A1545.11.10	Black	18.6 mm	0.732 in	Polyamide (PA), Nylon	Cable Gland	PG11	Sealing Ring	100 °C	-30 ░C			0.315 in	8 mm	IP68 - Dust Tight, Waterproof			0.157 in	4 mm	0.394 "	10 mm
American Electrical Inc. A1545.N0500.07	Black			Polyamide (PA), Nylon	Cable Gland	1/2" NPT	Sealing Ring	100 °C	-30 ░C	3 mm	0.118 in	0.591 in	15 mm	IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant					0.276 in	7 mm
American Electrical Inc. A1545.N1000.22	Black			Polyamide (PA), Nylon	Cable Gland	1" NPT	Sealing Ring	100 °C	-30 ░C			0.591 in	15 mm	IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant					0.866 "	22 mm
American Electrical Inc. A1545.09.08	Black	15.2 mm	0.598 in	Polyamide (PA), Nylon	Cable Gland	PG9	Sealing Ring			3 mm	0.118 in	0.315 in	8 mm	IP68 - Dust Tight, Waterproof					0.315 in	8 mm
American Electrical Inc. A1545.N0750.14	Black			Polyamide (PA), Nylon	Cable Gland	3/4 NPT	Sealing Ring	100 °C	-30 ░C	6.5 mm	0.256 in	0.591 in	15 mm	IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant	14 mm	0.551 "
American Electrical Inc. A1545.21.18	Black	28.3 mm	1.114 in	Polyamide (PA), Nylon	Cable Gland	PG21	Sealing Ring	100 °C	-30 ░C	11 mm	0.433 in	0.433 in	11 mm	IP68 - Dust Tight, Waterproof					0.709 in	18.01 mm
American Electrical Inc. A1545.N0500.12	Black			Polyamide (PA), Nylon	Cable Gland	1/2" NPT	Sealing Ring	100 °C	-30 ░C	5.5 mm	0.217 in	0.591 in	15 mm	IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant					0.472 in	12 mm
American Electrical Inc. A1545.36.33	Black			Polyamide (PA), Nylon	Cable Gland	PG36	Sealing Ring	100 °C	-30 ░C	22 mm	0.866 in	0.591 in	15 mm	IP68 - Dust Tight, Waterproof	33 mm	1.299 in					1.85 in	47 mm
American Electrical Inc. A1545.11.07	Black	18.6 mm	0.732 in	Polyamide (PA), Nylon	Cable Gland	PG11	Sealing Ring	100 °C	-30 ░C	2 mm	0.079 in	0.315 in	8 mm	IP68 - Dust Tight, Waterproof					0.276 in	7 mm
