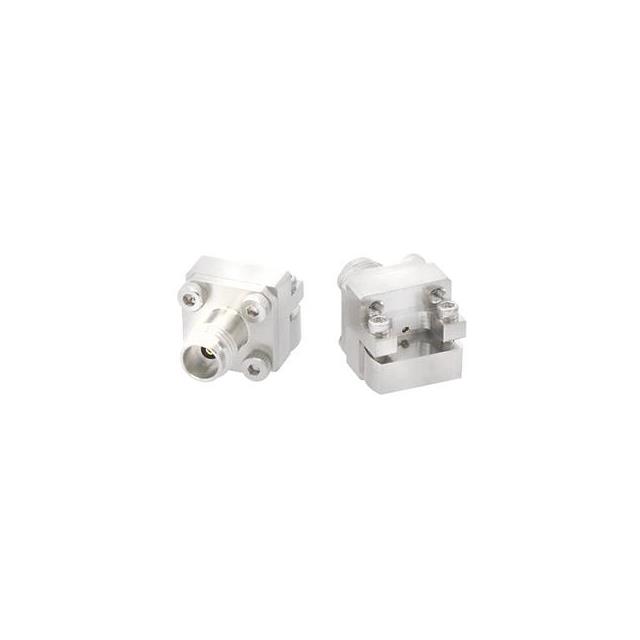

EL02FS002

Active

WITHWAVE CO LTD

END LAUNCH 2.4 MM CONNECTOR(DC T

Search across all available documentation for this part.

Active

WITHWAVE CO LTD

END LAUNCH 2.4 MM CONNECTOR(DC T

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.4mm (APC-2.4, OS-50) Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Compression

Technical documentation and resources

Part	Center Contact Material	Mounting Type	Impedance	Body Material	Center Contact Plating	Contact Termination	Frequency - Max [Max]	Connector Type	Shield Termination	Connector Style	Connector Style	Connector Style	Number of Ports
WITHWAVE CO LTD EL02FS001	Beryllium Copper	Board Edge, End Launch	50 Ohms	Stainless Steel	Gold	Compression	50 GHz	Female Socket, Receptacle	Screw	OS-50	2.4 mm	APC-2.4	1
WITHWAVE CO LTD EL02FS002	Beryllium Copper	Board Edge, End Launch	50 Ohms	Stainless Steel	Gold	Compression	50 GHz	Female Socket, Receptacle	Screw	OS-50	2.4 mm	APC-2.4	1
