10114-3000PE
Active3M

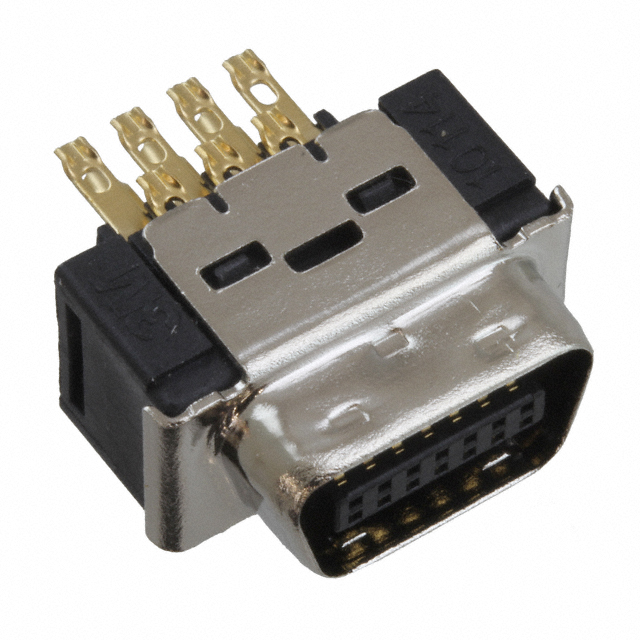

CONN PLUG 14POS STR SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
10114-3000PE
Active3M
CONN PLUG 14POS STR SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10114-3000PE | 10114 Series |
|---|---|---|
| - | - | |
| Connector Style | Center Strip Contacts | Center Strip Contacts |
| Connector Type | Plug | Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.51 µm | 0.51 - 0.76 µm |
| Contact Finish Thickness | 20 µin | 20 - 30 µin |
| Features | Shielded | Shielded |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 14 | 14 |
| Number of Rows | 2 | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.29 | |
| 10 | $ 9.26 | |||
| 25 | $ 8.72 | |||
| 40 | $ 8.50 | |||
| 100 | $ 8.28 | |||
| 300 | $ 7.38 | |||
| 500 | $ 6.93 | |||
| 1000 | $ 6.13 | |||
10114 Series
CONN PLUG 14POS STR SLDR CUP
| Part | Contact Finish Thickness | Contact Finish Thickness | Features | Mounting Type | Number of Rows | Contact Finish | Number of Positions | Connector Style | Connector Type |
|---|---|---|---|---|---|---|---|---|---|
0.51 µm | 20 µin | Shielded | Free Hanging (In-Line) | 2 | Gold | 14 | Center Strip Contacts | Plug | |
0.76 Ám | 30 Áin | Shielded | Free Hanging (In-Line) | 2 | Gold | 14 | Center Strip Contacts | Plug |
Description
General part information
10114 Series
14 Position Plug Connector Free Hanging (In-Line) Solder Cup
Documents
Technical documentation and resources
